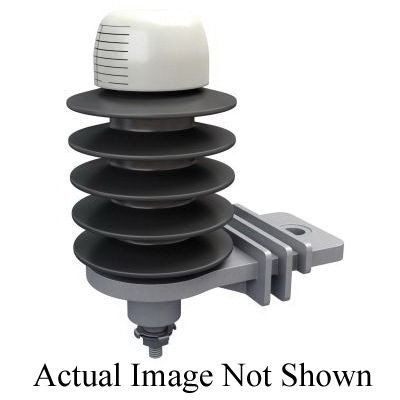

OHIO BRASS 2216095224 PVR Optima Riser Pole Distribution Surge Arrester, 10 kV Duty Cycle, 23.1/24.1/25.1/27/29.8/34.6 kV Maximum Discharge, 8.4 kV Operating, ESP™ Polymer

Selected 2216095224OHIO BRASS 2216095224 PVR Optima Riser Pole Distribution Surge Arrester, 10 kV Duty Cycle, 23.1/24.1/25.1/27/29.8/34.6 kV Maximum Discharge, 8.4 kV Operating, ESP™ Polymer
2216095224OHIO BRASS 2216095224 PVR Optima Riser Pole Distribution Surge Arrester, 10 kV Duty Cycle, 23.1/24.1/25.1/27/29.8/34.6 kV Maximum Discharge, 8.4 kV Operating, ESP™ Polymer

Documents

Short Description

Hubbell introduced the first U.S. non-ceramic arrester in 1986 and continues to be the market leader with a full line of polymer arresters for distribution voltages. The PDV-65 offers cost effective protection for a 5 kA class arrester. The PDV-100 serves the IEC class 1 arrester market. The Optima disconnector improves system reliability and increases temporary overvoltage (TOV) capability. The Optima line includes normal duty (ND), heavy duty (HD), distribution medium (DM) and distribution high (DH) arrester products. The PVR Optima targets riser pole and cable applications and the PVI-LP is our IEC Class 2 offering. As a market leader in arrester technology since 1950, Hubbell has a proven track record of advanced arrester technology, distinguished product quality, and extraordinary customer support that establishes Hubbell as a premier manufacturer of arrester products.

Features

  • Over 30 Million distribution arresters in service with less than a 0.02% failure rate - providing critical protection, longer
  • Universal wildlife protective cap
  • Excellent performance history
  • Improved isolator reliability
  • Disconnector operates at fault currents down to 1 A
  • Higher power-frequency TOV capability
  • Improves system reliability
  • Shipping restraint not required for ground lead disconnector
  • 23.1 kV at 1.5 kA, 24.1 kV at 3 kA, 25.1 kV at 5 kA, 27 kV at 10 kA, 29.8 kV at 20 kA, 34.6 kV at 40 kA maximum discharge voltage

Specification

Material
ESP™ Polymer
Maximum Discharge Voltage
23.1/24.1/25.1/27/29.8/34.6 kV
Operating Voltage
8.4 kV
Minimum Order Qty
1
Order Interval
1
Amperage Rating
250 A
BIL Rating
105 kV
Catalog ID
HPS2216095224
Creepage Distance
15.4 in
Dimensions
5-1/2 in H
Duty Cycle Voltage
10 kV
Includes
Fasteners, Isolators and Terminal Attachments
Standard & Approvals
IEEE C62.11 2012
Strike Distance
6.8 in
Surge Protection Voltage
19.9 kV
Temperature Rating
115 deg C
