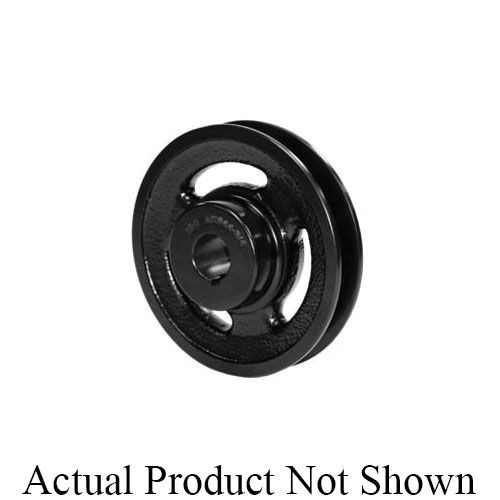

IDC Select® IDC AK049-1/2 Light Duty Type 3 Single Groove Sheave With Setscrew, Bored to Size Bore, 1/2 in Dia Bore, 4-3/4 in OD, 4-1/2 in Dia Pitch, 3/4 in W Face

Selected IDC AK089-3/4IDC Select® IDC AK027-5/8 Light Duty Type 2 Single Groove Sheave With 3/16 x 3/32 in Keyway and Setscrew, Bored to Size Bore, 5/8 in Dia Bore, 2.7 in OD, 2-1/2 in Dia Pitch, 21/32 in W Face
IDC AK089-3/4IDC Select® IDC AK027-5/8 Light Duty Type 2 Single Groove Sheave With 3/16 x 3/32 in Keyway and Setscrew, Bored to Size Bore, 5/8 in Dia Bore, 2.7 in OD, 2-1/2 in Dia Pitch, 21/32 in W Face

Short Description

IDC Select® light duty bored-to-size sheaves are available in single and two groove designs for A-B and 3L-4L-5L belts. Each unit is supplied with a keyway and a set screw over the keyway. They are precision machined from 25 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.

Features

  • Precision machined from gray cast iron
  • Statically balanced
  • Cast iron sheaves should not exceed 6500 fpm rim speed
  • Special or dynamic balancing should be considered when speeds exceed 5000 fpm
  • Without keyway
  • 4.16 in Dia pitch 3L/4.5 in Dia pitch 4L(A)

Specification

Standard & Approvals
ASTM Specified, SAE Standard
Suitable For Use With
3L and 4L/A Cross Section V-Belts
Bore Diameter
1/2 in
Bore Type
Bored to Size
Face Width
3/4 in
Hub Projection
15/32 in
Outside Diameter
4-3/4 in
Pitch Diameter
4-1/2 in
Type
Light Duty Type 3
Finish
Baked Enamel
Material
Class 25 Cast Iron
