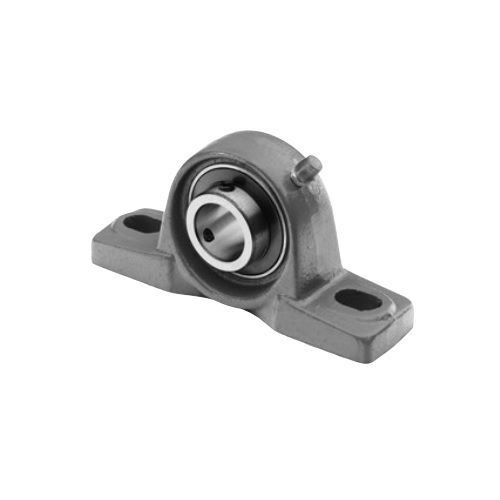

IDC Select® UCPK206-19 Pillow Block Bearing, UCPK Low Center 2-Bolt, 1.1825 in (1 3/16 in) Bore Dia, 6.2969 in (6 19/64 in) Overall L.
Selected I CUCPK206 19
IDC Select® UCPK206-19 Pillow Block Bearing, UCPK Low Center 2-Bolt, 1.1825 in (1 3/16 in) Bore Dia, 6.2969 in (6 19/64 in) Overall L.
SKU: I-CUCPK206-19
Manufacturer Part Number: UCPK206-19
Documents
Features
- One-Piece Cast Iron Housing - Solid Base
- Wide Inner Ring Bearing
- Dual Heavy-Duty Slinger-Type Contact Seals
- Cup Point Set Screws 120º Apart Lock Unit Securely to Shaft
- Fully Self-Aligning
Specification
| Mounting Type | Set Screw |
|---|---|
| Overall Length | 6.2969 in (6 19/64 in) |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Bolt Center-to-Center Length | 4.7656 in (4 49/64 in) |
| Bore Diameter | 1.1825 in (1 3/16 in) |
| Catalog ID | I-CUCPK206-19 |
| Series | UCPK Low Center 2-Bolt |
| Type | Pillow Block Bearing |
