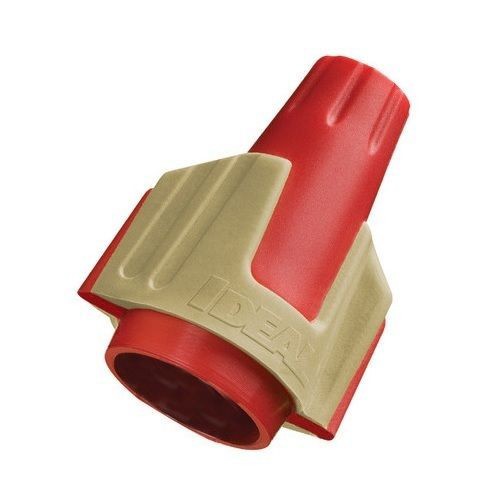

IDEAL® TWISTER® Pro 30-244J 344® Fire Retardant Wire Connector, Swept Wing/Twist On Shell, Square Wire Spring, 22 to 8 AWG Solid Copper/Stranded Wire, Polypropylene

Selected IDEAL® TWISTER® Pro 30-244J 344® Fire Retardant Wire Connector, Swept Wing/Twist On Shell, Square Wire Spring, 22 to 8 AWG Solid Copper/Stranded Wire, Polypropylene
IDEAL® TWISTER® Pro 30-244J 344® Fire Retardant Wire Connector, Swept Wing/Twist On Shell, Square Wire Spring, 22 to 8 AWG Solid Copper/Stranded Wire, Polypropylene

Documents

Short Description

TWISTER® wire connectors have earned a solid reputation as the most technically advanced wire connector available. These superior wire connectors are designed from top to bottom with features to provide more comfort and less fatigue to professional electricians. With swept wings and an expanding, live action spring, the Twister® supports a wide range of common wiring configurations with comfort and ease, even on the toughest combinations like solid to stranded. The copolymer shell expands for smooth, progressive tightening ensuring dependable connections.

Features

  • Widest red/tan wire range in the industry
  • SureGrip™ over molding provides better grip for improved leverage, more torque and faster connections
  • Comfortable swept wings designed to help reduce hand fatigue
  • Expanding square wire spring provides a secure connection every time
  • Better grip and more leverage for faster connections with less effort
  • For tough environmental conditions
  • 1000 V maximum in fixtures and signs

Specification

Material
Polypropylene
Series
344®
Shell Style
Swept Wing/Twist On
Specifications
2 to 4 Conductors, 18 to 2 AWG Minimum, 10 to 4 AWG Maximum Conductor Combination
Spring Type
Square Wire
Temperature Rating
221 deg F
Type
Fire Retardant
Voltage Rating
600 VAC
Wire Size
22 to 8 AWG
Wire Type
Solid Copper/Stranded
Standard & Approvals
BAA Compliant, CSA C22.2 No 188, Federal Specification W-S-610E, RoHS Compliant, UL94 V-2 Flammability Rating, UL 486C
Application
For Insulating or Joining One or More Conductors
EANUCC13
0783250561384
Color
Red/Tan
