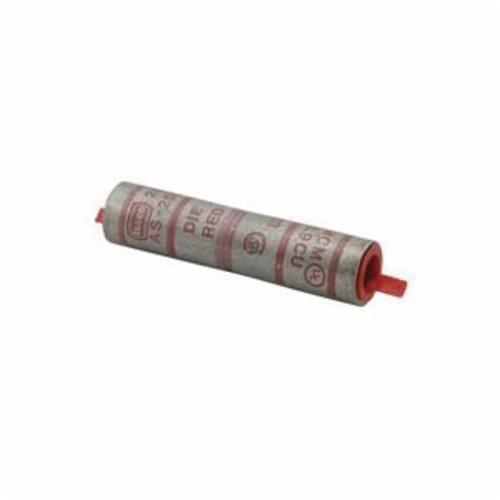

ILSCO® ClearChoice® AS-1/0 AS Series Dual Rated Compression Sleeve, 1/0 AWG Aluminum/Copper Conductor, Die Code: 8, 2-3/8 in L, Aluminum

Selected AS-2ILSCO® ClearChoice® AS-1/0 AS Series Dual Rated Compression Sleeve, 1/0 AWG Aluminum/Copper Conductor, Die Code: 8, 2-3/8 in L, Aluminum
AS-2ILSCO® ClearChoice® AS-1/0 AS Series Dual Rated Compression Sleeve, 1/0 AWG Aluminum/Copper Conductor, Die Code: 8, 2-3/8 in L, Aluminum

Documents

Short Description

ClearChoice promotion continues to be tremendously effective in strengthening our strategic industry positioning: ILSCO is the ClearChoice in providing innovative, proprietary solutions that save time and money

Features

  • Manufactured from high strength aluminum alloy and electro-tin plated
  • Standard with chamfered end barrel, center wire stop and prefilled with DE-OX
  • Proper high voltage spacings and insulation techniques are used, may be used for high voltage applications up to 35 kV
  • Clearly marked with wire size and die index for Ilsco tools, proper number and location of crimps
  • Aluminum class B concentric, compressed and unidirectional lay compact, copper class B concentric, class B compressed, class C concentric strand configurations
  • Listed with Ilsco tools ILC -12, ILC-12H, ILCB-12, ILC-14, ILC-14H, IDTB-12, ILC-15, MT-25, 94285, IDT-12, IDT-12H
  • Provides low contact resistance, maximum conductivity and excellent crimping characteristics and versatility
  • Provides easy conductor insertion, visual tooling recommendation for ILSCO or standard industry tools
  • Prevents dissimilar metals from coming into contact and insures that conductors are fully inserted
  • Prevents oxides from forming, foreign materials from entering the connector prior to usage and color code identifies the proper compression die

Specification

Length
2-3/8 in
Material
Aluminum
Minimum Order Qty
1
Order Interval
1
Color
Tan
Conductor Size
1/0 AWG
Conductor Type
Aluminum/Copper
Connector Type
Crimp
Die Code
8
Finish
Electro-Tin Plated
Temperature Rating
90 deg C
Type
Dual Rated
Voltage Rating
600 VAC
Standard & Approvals
LR-29601 CSA Certified, RoHS Compliant, UL 486A-B, UL E6207 453G Listed
Application
For Splicer/Reducer
Specifications
1-1/2 in L Strip, 0.385 in ID x 0.599 in OD
Series
AS
Catalog ID
ILSAS-1/0
