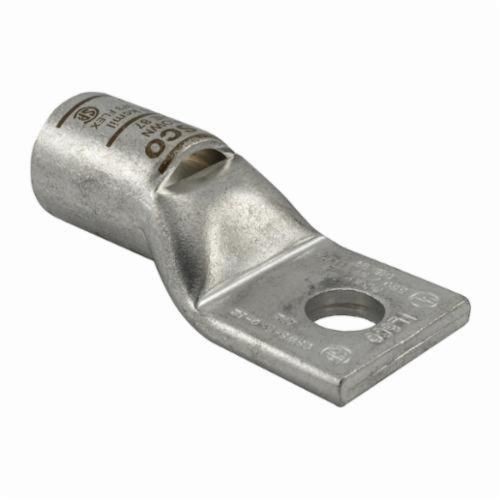

ILSCO® SureCrimp® CSWS-250-12 CSWS 1-Hole Lug Compression Connector Sight Hole With Sight Hole, 1/0 AWG to 250 kcmil kcmil Flex Copper Conductor, Die Code: ILD-62, 1/2 in Stud, Tin Plated Copper
ILSCO® SureCrimp® CSWS-250-12 CSWS 1-Hole Lug Compression Connector Sight Hole With Sight Hole, 1/0 AWG to 250 kcmil kcmil Flex Copper Conductor, Die Code: ILD-62, 1/2 in Stud, Tin Plated Copper
SKU: ILSCSWS-250-12
Manufacturer Part Number: CSWS-250-12
UPC: 783669640779
Documents
Features
- Manufactured from high strength seamless copper tubing, electro tin plated
- Chamfered entry
- Color coded
- Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
- Offers maximum conductivity and excellent crimping characteristics
- Provides low contact resistance
- For easy conductor insertion
- Identifies the proper compression die
- Application versatility
- Reduces inventory requirements
- For grounding and bonding applications
- 1 mounting hole
- Alternate conductor size of 4/0 FLEX
- Expanded conductor size of 250 kcmil-1/0 AWG
- 1-1/8 in L Strip, 0.562 in Dia Stud Hole
Specification
| Material | Copper |
|---|---|
| Temperature Rating | 90 deg C |
| Die Code | I-62 |
| Barrel Style | Short/Standard |
| Barrel Size | 1.063 in L |
| Dimensions | 1.088 in W |
| Standard & Approvals | UL 453G Listed, CSA LR-29601 Certified, NEBS3 Tested, RoHS Compliant |
| Voltage Rating | 600 VAC to 35 kV VAC |
| Tongue Size | 1.25 in L x 1.088 in W |
| Stud Size | 1/2 in |
| Series | CSWS |
| Overall Length | 2.844 in |
| Color Code | Yellow |
| Conductor Size | 250 kcmil |
| Type | 1-Hole |
