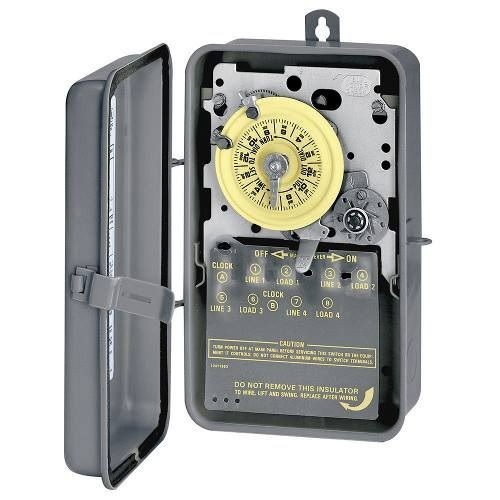

Intermatic® T1472BR T1400 Mechanical Timer Switch, 24 hr Setting, 208 to 277 VAC, 5 hp, 4NO 4PST Contact, 4 Poles

Selected Intermatic® T1472BR T1400 Mechanical Timer Switch, 24 hr Setting, 208 to 277 VAC, 5 hp, 4NO 4PST Contact, 4 Poles
Intermatic® T1472BR T1400 Mechanical Timer Switch, 24 hr Setting, 208 to 277 VAC, 5 hp, 4NO 4PST Contact, 4 Poles

Short Description

Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series time switches allow for up to 10 ON/OFF settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with one set of ON/OFF trippers as well as three skipper screws to omit the schedule for at least three days.

Features

  • Controls loads up to 40 A per pole
  • Direct 24-Hour control of most loads
  • Up to 10 ON/OFF operations each day
  • Minimum ON/OFF times of one hour
  • Manual override
  • One ON and one OFF tripper and three day-skipper screws included
  • 40 A at 120 - 480 VAC (resistive), 40 A at 120/240/277 VAC (Tungsten, Inductive)
  • 2 hp, 24 FLA at 120 VAC; 5 hp, 28 FLA at 240 VAC (1 phase), 7 1/2 hp, 28 FLA at 208 VAC; 10 hp, 28 FLA at 240 VAC (3phase) motor
  • 60 Hz
  • 3 W power
  • 1000 VA pilot duty
  • 14 - 8 AWG
  • 16 A, 277 VAC electronic ballast
  • 24 hr time duration

Specification

Horsepower
10 hp
Mounting Type
Wall
Number Of Poles
4
Series
T1400
Temperature Rating
-40 to 130 deg F
Time Setting
24 hr
Voltage Rating
208 to 277 VAC
Standard & Approvals
cCSAus Certified, cULus Listed, HVACR, RoHS Compliant
Amperage Rating
40 A
Dimensions
10-1/8 in H x 6-1/2 in W x 3-5/8 in D
Contact Form
4NO 4PST
Enclosure Type
NEMA 3R
