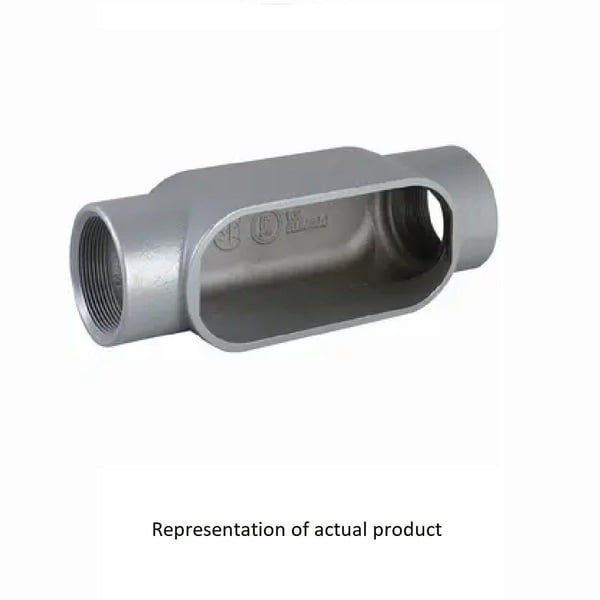

Killark® C67 Type-C Conduit Body, 2 in Hub, Form 7 Form, 48 cu-in Capacity, Iron, Tri-Coated

Image asset. Press spacebar to set to main image.

Documents

Short Description

Form 7 conduit bodies offer a great approach in size for neat compact installation. This series is available in our Duraloy® iron and copper-free aluminum, with superior corrosive protected electro-statically applied paint.

Features

  • Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal
  • Ten standard hub configurations
  • Intermateability UL listed and CSA certified interchangeability with competitive products
  • Innovative spring clip design for installation ease and repeat usage
  • Smooth integral wire bushings protects cable from damage when wires are pulled through opening
  • For use with threaded rigid conduit steel or aluminum
  • Flat back design for greater wiring capacity and mounting stability
  • Suitable for wet locations when used with gaskets
  • High quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets
  • Superior corrosion protection tri-coat finish of electro zinc, chromate sealant and electrostatically applied powder coating
  • Suitable for use in hazardous location applications when installed according to NEC articles 501.10(b), class I, division 2, (suitable for use in class I zone 2 applications) 502.10 and 503.10

Specification

Minimum Order Qty
1
Order Interval
1
Catalog ID
KLRC57
Standard & Approvals
Federal Specification W-C-586D/A-A 50563, UL File No. E3397, CSA File No. LR11852, NEC 501.10(b) Class I Div 2, 502.10, 503.10
Connection Type
Thread
Hub Size
2 in
Number of Hubs
2
EANUCC13
0783936011455
Type
Type-C
Finish
Tri-Coated
Enclosure
NEMA 3
Form
Form 7
Dimensions
9-7/16 in L x 3-1/16 in W x 3-1/8 in H
Color
Gray
Material
Iron
Capacity
48 cu-in
