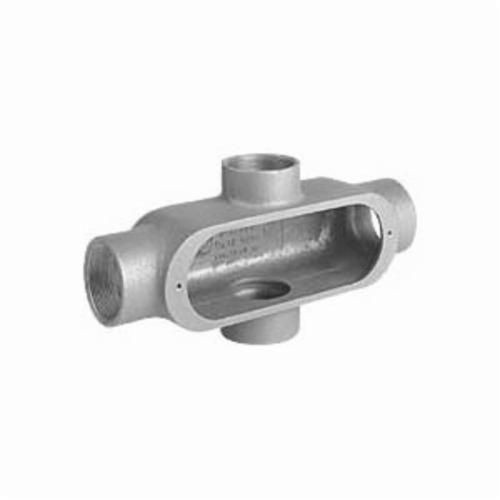

Killark® Duraloy® 5 OX-1 O Series Type X Conduit Body, 1/2 in Hub, Form 5 Form, 4 cu-in Capacity, Aluminum, Powder Coated

Selected OX-5Killark® Duraloy® 5 OX-1 O Series Type X Conduit Body, 1/2 in Hub, Form 5 Form, 4 cu-in Capacity, Aluminum, Powder Coated
OX-5Killark® Duraloy® 5 OX-1 O Series Type X Conduit Body, 1/2 in Hub, Form 5 Form, 4 cu-in Capacity, Aluminum, Powder Coated

Documents

Short Description

Killark has become a global provider of harsh and hazardous location products. The Killark range encompasses industrial and explosion proof fittings engineered to withstand the toughest extremes in climate from the dry and arid Middle East, tropical Asia to frozen Northern Canada.

Features

  • Tapered threaded hubs (NPT)
  • Raintight when used with gasketed covers
  • Interchangeable with competitive products
  • Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b), Class I, Div. 2, (Suitable for use in Class I Zone 2 applications) 502.10 and 503.10
  • Flat back
  • Set screw hubs
  • Electrostatically Applied Powder Coated finish
  • Copper Free Aluminum

Specification

Hub Size
1/2 in
Material
Aluminum
Number of Hubs
4
Series
O/DURALOY 5
Type
Type X
Application
For used to provide access to conductors for pulling, splicing and maintenance and threaded for Rigid and IMC Conduit
Standard & Approvals
CSA LR11852 Certified, UL E3397 Listed, RoHS Compliant
Capacity
4 cu-in
Color
Gray
Connection Type
Threaded
Finish
Powder Coated
Form
5
Dimensions
5-3/8 in L x 1-11/16 in W x 1-3/4 in H
