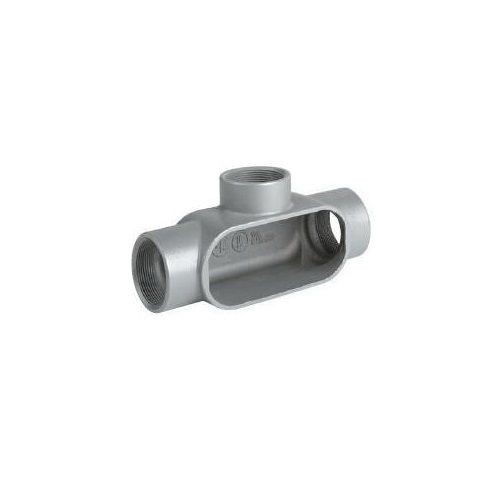

Killark® Duraloy® 7 T27CG Type T Conduit Body With Cover, Neoprene Gasket, Sealing Hardware 316 Stainless Steel Screw, Washer, 3/4 in Hub, 7 Form, 9.5 cu-in Capacity, Iron, Tri-Coated
Killark® Duraloy® 7 T27CG Type T Conduit Body With Cover, Neoprene Gasket, Sealing Hardware 316 Stainless Steel Screw, Washer, 3/4 in Hub, 7 Form, 9.5 cu-in Capacity, Iron, Tri-Coated
SKU: KLRT27CG
Manufacturer Part Number: T27CG
UPC: 783936048246
Short Description
Features
- Intermateability UL listed and CSA certified interchangeability with competitive products
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 seal
- For wet locations when used with gasketed covers
- Innovative spring clip design for installation ease and repeat usage
- Smooth integral wire bushings protects cable from damage when wires are pulled through opening
- For use with threaded rigid conduit steel or aluminum
- Flat back design for greater wiring capacity and mounting stability
- Tri-coat finish of electro-zinc, chromate sealant and electrostatically applied powder coating
- High quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets
Specification
| Hub Size | 3/4 in |
|---|---|
| Material | Iron |
| Number of Hubs | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Capacity | 9.5 |
| Catalog ID | KLRT27CG |
| Color | Gray |
| Connection Type | Threaded |
| Dimensions | 6-5/16 in L x 2-3/4 in W x 2-1/16 in H |
| Enclosure | NEMA 3 |
| Finish | Tri-Coated |
| Form | Form 7 |
| Type | Type T |
| Application | To provide access to conductors for pulling, splicing and maintenance, threaded for rigid and IMC conduit |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL File No. E3397, CSA File No. LR11852, Federal Specification W-C-586D, A-A 50563, NEC 501.10(b) Class I Division 2, 502.10, 503.10 |
