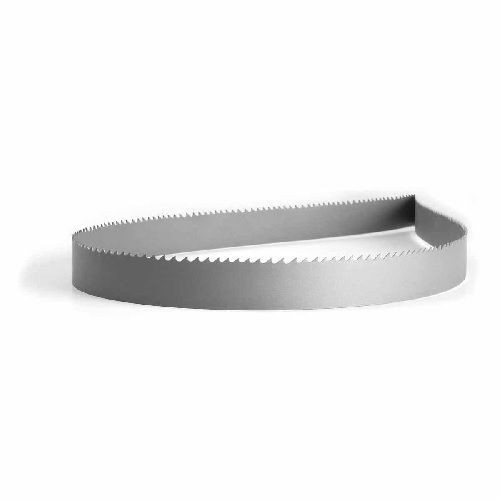

Lenox® Classic Pro™ 1793064 Welded Band Saw Blade, 14 ft 6 in L, 1-1/4 in W x 0.042 in THK, 3 to 4 TPI, Bi-Metal Blade, M42 HSS Tooth
Lenox® Classic Pro™ 1793064 Welded Band Saw Blade, 14 ft 6 in L, 1-1/4 in W x 0.042 in THK, 3 to 4 TPI, Bi-Metal Blade, M42 HSS Tooth
SKU: LEN1793064
Manufacturer Part Number: 1793064
UPC: 781303065087
Documents
Features
- The ultimate multi-purpose blade for production cutting
- Exceptional blade life
- Proprietary backing steel preparation increases fatigue life and minimizes band breaks
- Robust M42 high speed steel edge provides superior heat and wear resistance
- Extremely versatile cuts a wide range of metals from low carbon steels to higher strength alloys
- Advanced design enables production cutting of solids and structurals
- Positive rake angle improves tooth penetration on saws with limited feed force
- Consistent performance cut after cut
- Unique tooth geometry and set minimizes noise and vibration from the very first cut
- Smooth, straight cuts when cutting multiple pieces or wide cross sections
- Ideal for cutting materials like aluminum/non-ferrous, stainless steels, carbon steels, tool steels, structural steels, mold steels and alloy steels
- Variable tooth spacing and gullet capacity of this design reduces noise and vibration, while allowing faster cutting rates, long blade life and smooth cuts
- Typically vari-raker set provides quiet, efficient cutting and a smooth finish with less burr
- Extra heavy set available to prevent blade pinching
- High speed steel tooth tips combined with flexible alloy steel backing material results in band saw blades that are the most cost effective choice for most metal sawing applications
- A wide variety of products are available to ensure optimal blade performance in your application
Specification
| Hook Angle | 9 deg |
|---|---|
| Kerf | 0.067 |
| Length | 14 ft 6 in |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Back Type | Flexible/Spring Tempered Alloy Steel |
| Blade Material | M42 HSS Edge |
| Blade Thickness | 0.042 |
| Catalog ID | LEN1793064 |
| Side Set Degree | 0.0125 |
| Teeth per Inch | 3/4 TPI |
| Tooth Form | Variable Pitch/Milled |
| Tooth Set | Vari-Raker/Extra Heavy Set |
| Type | Bi-Metal |
| Application | Production Cutting |
| Blade Width | 1/1/2004 12:00:00 AM |
