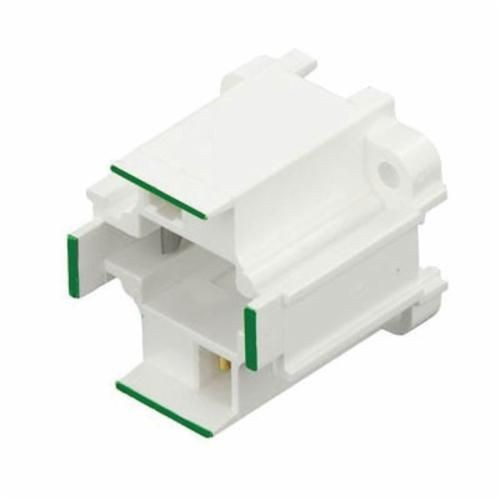

Leviton® 26725-212 Lampholder, 75 W Lamp, 600 VAC, G24d-2 Bi-Pin CFL Lamp

Selected 26725-212Leviton® 26725-212 Lampholder, 75 W Lamp, 600 VAC, G24d-2 Bi-Pin CFL Lamp
26725-212Leviton® 26725-212 Lampholder, 75 W Lamp, 600 VAC, G24d-2 Bi-Pin CFL Lamp

Features

  • "Smart" CFL lampholders are color coded for easy wattage identification
  • Bottom snap-in versions for easier panel assembly
  • Metal spring lamp retainer clip provides positive lamp retention and is more durable than plastic clips
  • Two wiring ports per contact speed harness wiring
  • Four screw holes for greater mounting flexibility
  • Wire routing options for top or bottom side of mounting panel for easier assembly
  • White thermoplastic body

Specification

Lamp Base
Bi-Pin G24d-2
Lamp Size
10
Lamp Type
Compact Fluorescent
Lamp Wattage
75 W
Material
Thermoplastic
Mounting Type
Screw
Minimum Order Qty
1
Order Interval
1
Ballast Type
Electronic
Catalog ID
LEV26725-212
Color
Green
Connection Type
Snap-In
Dimensions
1.4 in L
Voltage Rating
600 VAC
Terminal Type
Push-in
Standard & Approvals
ARRA, Buy American Act, RoHS Compliant, UL File No. E-5833, CSA File No. LR-1863, NOM 057
