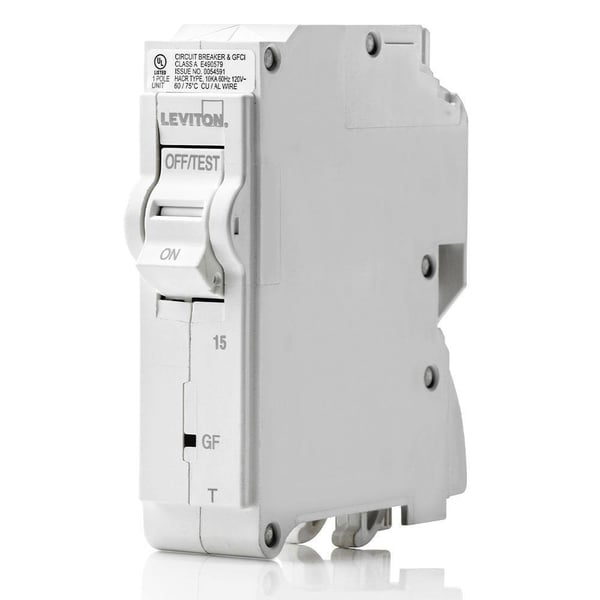

Leviton® LB115-GFT GFCI Circuit Breaker With Instruction Sheet, 120 VAC, 15 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip

Selected Leviton LB115 GFT
Leviton LB115 GFT

Documents

Short Description

The most advanced circuit breakers on the market are also the fastest to install. Only Leviton® circuit breakers feature an all plug on design, so you can wire the entire panel at rough-in, without a single circuit breaker present. Intuitive diagnostics such as LEDs on electronic circuit breakers indicate fault type and color indicators in each rocker handle display operational status at a glance.

Features

  • Simple - features an all plug-on design - no wiring to the circuit breaker
  • Intuitive - color indicators in the handle to easily see operational status at a glance
  • Approachable - contemporary aesthetic and rocker style handle are more user friendly
  • Protection of personnel

Specification

Trip Type
Thermal Magnetic
Standard & Approvals
CSA-C22.2 File No. 5-02, EMC Compatible, FCC Certified, HACR Certified, UL File No. 489/UL 943
Number Of Poles
1
Connection Type
Plug-On
Voltage Rating
120 VAC
Amperage Rating
15 A
Interrupt Rating
10 kA
Temperature Rating
77 to 104 deg F
Dimensions
1 in W x 3.1 in D x 3.9 in H
Actuator Type
Rocker Handle
Application
For outdoor load center applications
