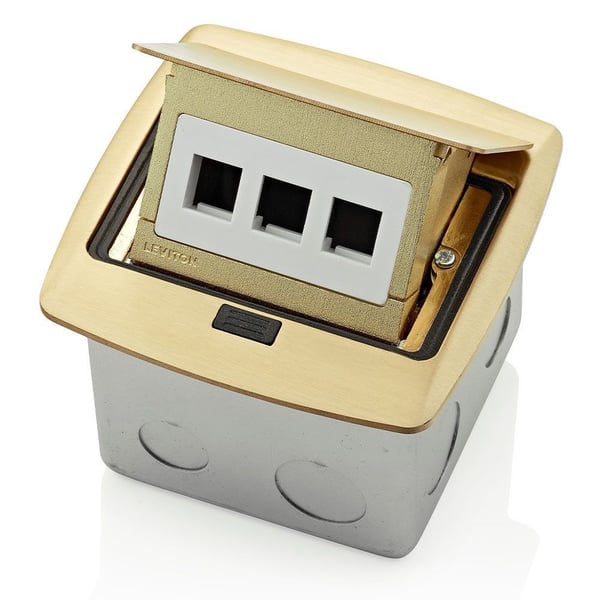

Leviton® PFQP3-BR Pop-Up Floor Box With 3-Port QuickPort® Insert, Steel

Selected PFQP3-BRLeviton® PFQP3-BR Pop-Up Floor Box With 3-Port QuickPort® Insert, Steel
PFQP3-BRLeviton® PFQP3-BR Pop-Up Floor Box With 3-Port QuickPort® Insert, Steel

Documents

Short Description

The pop-up floor box receptacle offers a modern, practical way to attractively conceal electrical wiring devices in homes and businesses, while still providing accessibility to power when needed. Featuring a sleek low profile and stylish metal cover that recesses neatly into the floor when not in use, it takes only the press of a button to make the receptacle available. The pop-up floor box receptacle may be used to satisfy the appropriate code requirements for residential and commercial applications, it also offers protection from ingress of water spray when closed and meets or exceeds scrub water test for safety.

Features

  • Contoured top plate for enhanced aesthetics
  • Side latch open/close mechanism prevents scratching of wiring device face
  • Low profile cover recesses when not in use, reducing above floor height to only 1/4 in
  • Assembled with genuine Leviton® wiring devices
  • Pre-wired terminal block for easy wiring access and installation
  • IP44 rated - protection from ingress of water spray from any direction when closed
  • Meets or exceeds UL 514A requirements including scrub water test
  • Tamper-resistant to comply with the latest NEC® requirements for tamper-resistant receptacles in residences and childcare facilities
  • Accepts all QuickPort® snap-in modules

Specification

Material
Steel
Mounting Type
Floor/Threaded
Minimum Order Qty
1
Order Interval
1
Catalog ID
LEVPFQP3-BR
Color
Brass
Dimensions
4 in L x 3 in W x 4 in H
Type
Pop-Up
Application
For residential such as homes and multi-family units with floor to ceiling windows, great rooms, other open concept spaces and commercial applications such as cafe/restaurants, hotels, shopping malls, offices, meeting rooms and more, for used with a variety of flooring-types: tile, stone, wood, laminate, carpet, concrete and vinyl, used to support voice, data, audio and video applications
Standard & Approvals
UL 514A, CSA 22.2 File No. 18.1, cETLus Listed, NEC Certified
Includes
(1) Adjustable Concrete Rated Electrical Box, (2) Mounting Bracket, (1) Protective Cover, (6) Screw and (2) 26 mm Screw
