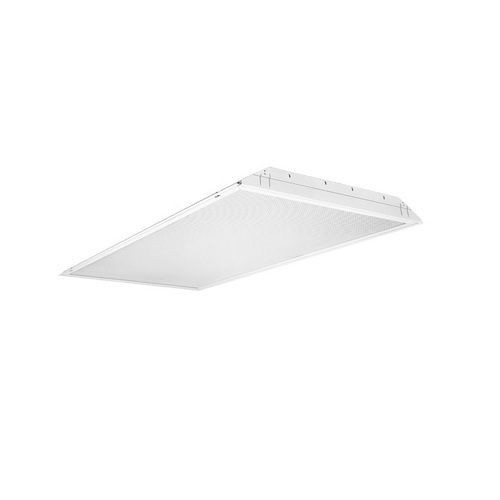

Lithonia Lighting® 2GT8 2 32 A12 MVOLT GEB10IS PWS1836 General Purpose Indoor Troffer, (2) T8 Fluorescent Lamp, 120 to 277 VAC, Steel Housing

Lithonia Lighting® 2GT8 2 32 A12 MVOLT GEB10IS PWS1836 General Purpose Indoor Troffer, (2) T8 Fluorescent Lamp, 120 to 277 VAC, Steel Housing
SKU: LIT2GT8232A12MVOLTGEB10I
Manufacturer Part Number: 2GT8 2 32 A12 MVOLT GEB10IS PWS1836
UPC: 745980740613
Documents
Features
- Smooth hemmed sides and smooth, inward formed end flanges for safe handling
- Lighter weight fixture allows safe, easy installation
- Standard steel door frame has superior structural integrity with premium extruded appearance and precision flush mitered corners, steel door allows easy lens replacement without frame disassembly
- Powder painted, steel latches provide easy, secure door closure
- Superior mechanical light seal requires no foam gasketing
- Thermally protected, resetting, class P, HPF, non-PCB ballast
- Low profile static luminaire provides general illumination for recessed applications, ideal for restricted plenum spaces
- Improved performance - higher fixture efficiency
- NO 12 pattern acrylic
- Electronic ballast <10% THD, instant start
- 6 ft prewire, 3/8 in Dia, 18 ga 1-circuit
Specification
Standard & Approvals | UL Listed, cUL Listed, CSA Certified |
---|---|
Recessed Trim Type | Grid |
Voltage Rating | 120 to 277 VAC |
Ballast Type | Electronic |
Housing Material | Steel |
Lamp Base | Bi-Pin |
Lamp Type | T8 Fluorescent |
Lamp Wattage | 32 W |
Lens Type | Acrylic/Polycarbonate |
Light Color | White |
Mounting Type | Recessed |
Number of Lamps | 2 |
Lumens | 2850 Lumens |
Type | General Purpose |
Dimensions | 48 in L x 24 in W x 3-3/16 in D |
Series | 2GT8 |
