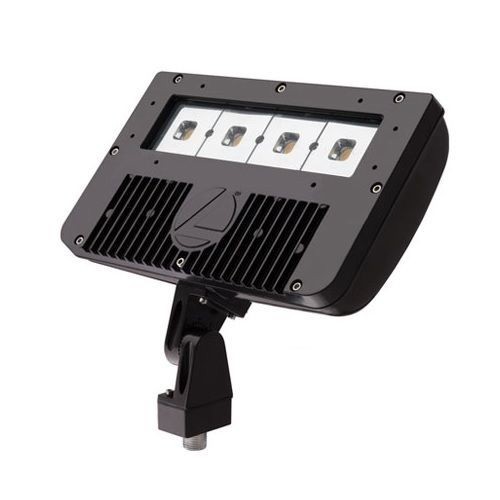

Lithonia Lighting® DSXF2 LED 4 50K M2 Flood Light Fixture, LED Lamp, 120/277 VAC, Bronze Housing

Selected Lithonia Lighting® DSXF2 LED 4 50K M2 Flood Light Fixture, LED Lamp, 120/277 VAC, Bronze Housing
Lithonia Lighting® DSXF2 LED 4 50K M2 Flood Light Fixture, LED Lamp, 120/277 VAC, Bronze Housing

Documents

Short Description

The D-Series Size 2 Flood features precision optics to beautifully illuminate a variety of applications as its sleek, compact styling blends seamlessly with its environment. The D-Series Flood reflector systems and cutting edge chip-on-board LED technology produce excellent uniformity combined with precision beam patterns for minimal spill light and incredible photometric performance. It’s the ideal long-life replacement for 150 - 250W metal halide floods, with typical energy savings of 70 percent and expected service life of over 100000 hours.

Features

  • The sleek design of the D-Series Floodlights reflects the embedded high performance LED technology
  • They are ideal for landscape, signage, accent, security and general area lighting in many commercial and residential applications
  • The LED driver is mounted in direct contact with the casting to promote low operating temperature and long life
  • Housing is completely sealed against moisture and environmental contaminants using a tempered glass lens(IP66). Low EPA (0.6 ft2 ) for optimized wind loading
  • A tightly controlled multi-stage process ensures a minimum 3 mils thickness for a finish that can withstand extreme climate changes without cracking or peeling
  • A variety of precision-molded vacuum metalized specular reflectors are engineered for superior target illumination, uniformity and spacing
  • Four COB engines
  • Size 2
  • 0.6 ft square EPA
  • 0.95 Lumen maintenance factor
  • Die-cast aluminum housing has integral heat sink fins to optimize thermal management through conductive and convective cooling
  • LED driver is mounted in direct contact with the casting to promote low operating temperature and long life, housing is completely sealed against moisture and environmental contaminants
  • Exterior parts are protected by a zinc-infused Super Durable TGIC thermoset powder coat finish that provides superior resistance to corrosion and weathering, tightly controlled multi-stage process ensures a minimum 3 mils thickness for a finish that can withstand extreme climate changes without cracking or peeling
  • Variety of precision-molded vacuum metalized specular reflectors are engineered for superior target illumination, uniformity and spacing
  • Light engine(s) consist of chip-on-board (COB) LEDs directly coupled to the housing to maximize heat dissipation and promote long life (100,000 hrs, L80)
  • Integral adjustable knuckle with 1/2-14NPS threaded pipe, tenon slipfitter, or integral slipfitter, facilitates quick and easy installation to a variety of mounting accessories, this secure connection enables the D-Series Size 1 to withstand upto a 1.5 G vibration load rating per ANSI C136.31
  • Single-engine unit uses a Class 2 electronic driver, dual-engine unit uses a Class 1 electronic driver, both drivers have a power factor >90%, THD <20%, and an expected life of 100,000 hours
  • Die Cast Aluminum housing

Specification

Housing Finish
Bronze
Housing Material
Aluminum
Lamp Type
LED
Lens Type
Tempered Glass
Mounting Type
Wall
Voltage Rating
120/277 VAC
Standard & Approvals
DLC Listed, CSA Certified, RoHS Compliant
Average Life
100000 hr
Color Rendering Index (CRI)
67
Color Temperature
5000 K
Enclosure Type
IP65
Dimensions
12 in H x 8-7/8 in W x 3-1/8 in D
Amperage Rating
530 mA
Application
Light Commercial and Residential Applications
Series
DSXF
Lumens
7749 Lumens
Lamp Wattage
74 W
