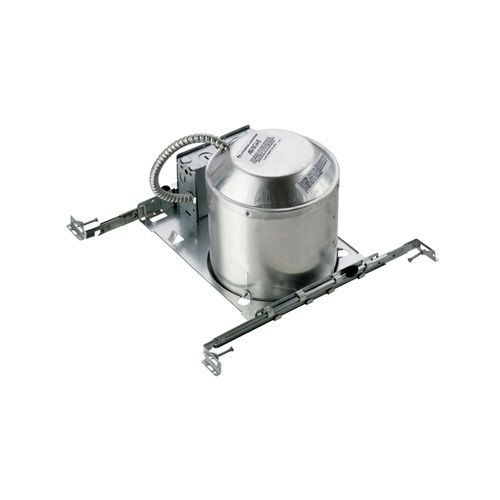

Lithonia Lighting® L7X R6 Airtight Contractor Select Downlight Housing, E26 Incandescent Lamp, IC/Non-IC Insulation, 120 VAC, 7 in Ceiling Opening, Steel Housing

Lithonia Lighting® L7X R6 Airtight Contractor Select Downlight Housing, E26 Incandescent Lamp, IC/Non-IC Insulation, 120 VAC, 7 in Ceiling Opening, Steel Housing
SKU: LITL7X-R6
Manufacturer Part Number: L7X R6
UPC: 784231091906
Documents
Features
- Recessed housing rated IC/non-ic
- For new construction only
- Approved for all ceiling and wiring types
- Approved for direct burial in insulation
- Airtight standard
- Aluminum housing with galvanized steel pan
- Galvanized bar hangers span up to 24 in o.c. and feature built-in nailer and integral T-bar clips
- Two locking screws hold fixture in position
- Galvanized steel junction box (4) built-in Romex® clamps
- Five 1/2 in and (2) 3/4 in nominal knockouts with slots for pryout ceiling/recessed mounting
- Rated for through branch wiring
- Maximum (4) 12 AWG conductors
- Tested to meet current energy codes
- Removable J-box door for easy access
- Retaining clips riveted to top of reflector hold trim inside housing
- Two-side mounted torsion springs on the trim and 2 receiving brackets in the can ensure a consistently tight fit with the ceiling
- Durable medium base porcelain socket with nickel plated copper alloy screw shell and contact
- Socket clips to top of housing to prevent paint overspray in socket screw she
Specification
Minimum Order Qty | 1 |
---|---|
Order Interval | 1 |
Catalog ID | LITL7X-R6 |
Standard & Approvals | UL, cUL Listed |
Suitable For Use With | 7O2 PF/7O2A Open Narrow Flange/7B2 TOR/7B2 TRMW TOR Baffle Narrow Flange/7RE1 Regressed Eyeball Wide Flange |
Voltage Rating | 120 VAC |
Ceiling Opening | 7 |
Housing Material | Aluminum |
Insulation Type | IC/Non-IC |
Lamp Type | Incandescent |
Mounting Type | Ceiling |
Number of Lamps | 1 |
Diameter | 6 |
Height | 8-3/4 in |
Width | 23 in |
Color | Nickel |
Series | L7X |
