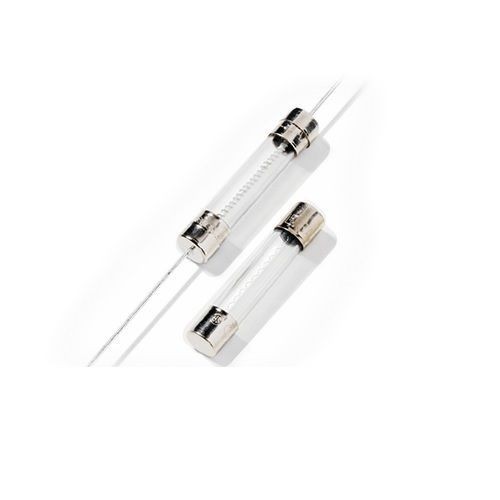

Littelfuse® POWR-GARD® Slo-Blo® 313.750P Time Delay Cartridge Fuse, 0.75 A, 250 VAC, 10 kA Interrupt, Cartridge Body
Littelfuse® POWR-GARD® Slo-Blo® 313.750P Time Delay Cartridge Fuse, 0.75 A, 250 VAC, 10 kA Interrupt, Cartridge Body
SKU: L-F313.750P
Manufacturer Part Number: 0313.750P
UPC: 079458922905
Documents
Short Description
Features
- Time-delayed in the overload range, which provides superior protection inductive loads such as motors, transformers and solenoids
- 3AG Indicating fuses instantly identify themselves upon opening by showing a discoloration of their glass bodies
- Guesswork and time-consuming circuit testing is eliminated
- Unique design offers the same quality performance characteristics as the standard 3AG fuse design
- Lead free
- Nickel-plated brass cap
- -55 to 125 deg C of Operating temperature
- Interrupting rating of 10 kA at 125 VAC
- 1 hour maximum at 1.35 4 hours minimum at 100% of response time
- 10 kA at 125 VAC interrupt rating
Specification
| Interrupt Rating | 10 kA |
|---|---|
| Material | Glass |
| Mounting Type | Holder |
| Minimum Order Qty | 5 |
| Order Interval | 5 |
| Amperage Rating | 0.75 A |
| Body Size | 1/4 in Dia x 1-1/4 in L |
| Body Style | Cartridge |
| Catalog ID | L-F313.750P |
| Series | Slo-Blo® 313 |
| Terminal Type | Ferrule |
| Type | Time Delay |
| Voltage Rating | 250 VAC |
| Application | Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits |
| Standard & Approvals | Standard 248-12 UL E10480 Listed, CSA 29862 Certified, RoHS Complaint |
