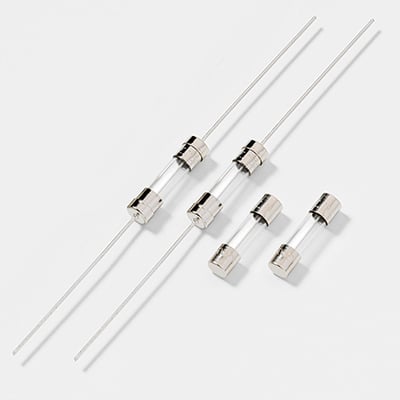

Littelfuse® POWR-GARD® 217010P Fast Acting Cartridge Fuse, 10 A, 250 V AC, 100 A Interrupt, Class: RK5, Cartridge Body

Selected IDW IMAGE 1ee2556fb4ccb651cb97a02b589a5403b246a0bea60299eb09c73b69fc78bdb8
IDW IMAGE 1ee2556fb4ccb651cb97a02b589a5403b246a0bea60299eb09c73b69fc78bdb8

Documents

Short Description

For over 85 years Littelfuse® has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse® we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO or construction, we are committed to being your circuit protection partner and appreciate your business.

Features

  • Designed to international (IEC) standards for use globally
  • Meets the IEC 60127-2, sheet 2 specification for fast acting fuses
  • Lead-free
  • Nickel plated brass cap, tin plated copper leads
  • -55 to 125 deg C operating temperature
  • 30 min minimum at 150%, 30 min maximum at 210%, 0.05 to 2 sec at 275%, 0.01 to 0.3 sec at 400%, 0.04 maximum at 1000% opening time
  • 100 A at 250 VAC interrupting rating

Specification

Class
RK5
Material
Glass
Interrupt Rating
100 A
Mounting Type
Holder
Type
Fast Acting
Body Size
5.5 mm Dia x 21.5 mm L
Terminal Type
Ferrule
Body Type
Cartridge
Indicating/Non-Indicating
Non-Indicating
Amperage Rating
10 A
Series
217
Response Time
30 min, 30 min, 0.05 to 2 s, 0.01 to 0.3 s, 0.04 s
Voltage Rating
250 V AC
