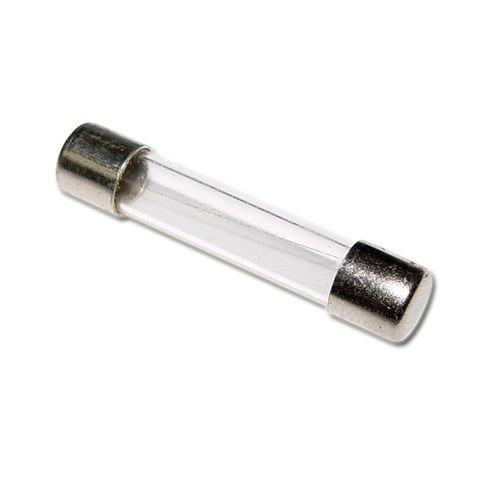

Littelfuse® POWR-GARD® Slo-Blo® 313005P Time Delay Cartridge Fuse, 5 A, 250 VAC, 10 kA Interrupt, Cartridge Body

Selected FilesL F313005P
FilesL F313005P

Documents

Short Description

The 3AG Slo-Blo® fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection. The fuse catalog number with the suffix "ID" instantly identifies itself upon opening by showing a discoloration of its glass body. Guesswork and time-consuming circuit testing are eliminated. This unique design offers the same quality performance characteristics as the standard 3AG Slo-Blo® Fuse design.

Features

  • Time-delayed in the overload range, which provides superior protection inductive loads such as motors, transformers and solenoids
  • 3AG Indicating fuses instantly identify themselves upon opening by showing a discoloration of their glass bodies
  • Guesswork and time-consuming circuit testing is eliminated
  • Unique design offers the same quality performance characteristics as the standard 3AG fuse design
  • Lead free
  • Nickel-plated brass cap
  • -55 to 125 deg C of Operating temperature
  • Interrupting rating of 10 kA at 125 VAC
  • 1 hour maximum at 1.35 4 hours minimum at 100% of response time

Specification

Interrupt Rating
200 A
Material
Glass
Mounting Type
Holder
Terminal Type
Ferrule
Voltage Rating
250 VAC
Application
Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits
Body Size
1/4 in Dia x 1-1/4 in L
Body Style
Cartridge
Amperage Rating
5 A
Standard & Approvals
Standard 248-12 UL E10480 Listed, CSA 29862 Certified, RoHS Complaint
Type
Time Delay
Series
Slo-Blo® 313
