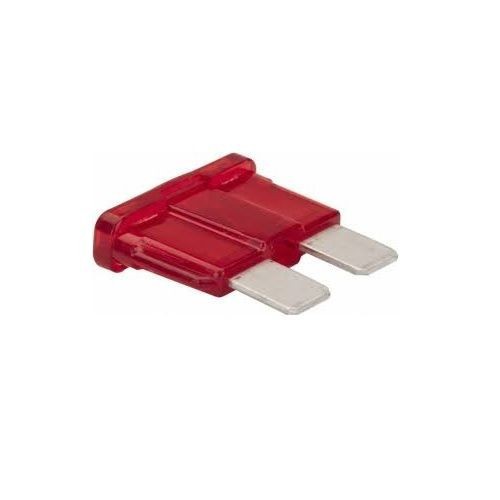

Littelfuse® ATO004 Fast Acting Smart Glow Automotive Fuse, 4 A, 32 VDC, 1 kA Interrupt

Selected Littelfuse® ATO004 Fast Acting Smart Glow Automotive Fuse, 4 A, 32 VDC, 1 kA Interrupt
Littelfuse® ATO004 Fast Acting Smart Glow Automotive Fuse, 4 A, 32 VDC, 1 kA Interrupt

Documents

Short Description

Developed by Littelfuse for the automotive industry, the ATOF® fuse has become the original equipment circuit protection standard for foreign and domestic automobiles and trucks. Readily identifiable and easily replaced, this fuse can be specified for a variety of low voltage electronic applications.

Features

  • 360000 sec minimum at 110%, 0.750 sec minimum and 600 sec maximum at 1.35 250 micro sec minimum and 50 sec maximum at 160%, 0.150 sec minimum and 5 sec maximum at 2 80 micro sec minimum and 500 micro sec maximum at 350%, 150 micro sec maximum at 600%, opening time
  • Color coded

Specification

Material
Nylon
Mounting Type
Holder
Series
ATO
Type
Smart Glow
Width
3/4 in
Application
For low voltage electronic applications
Standard & Approvals
UL File No. AU1410, CSA File No. 29862, SAE J1284, ISO 8820-3, RoHS Compliant
Amperage Rating
4 A
Voltage Rating
32 VDC
Terminal Type
Blade
Speed
Fast Acting
Length
0.74 in
Interrupt Rating
1 kA
Depth
0.2 in
Color
Pink
