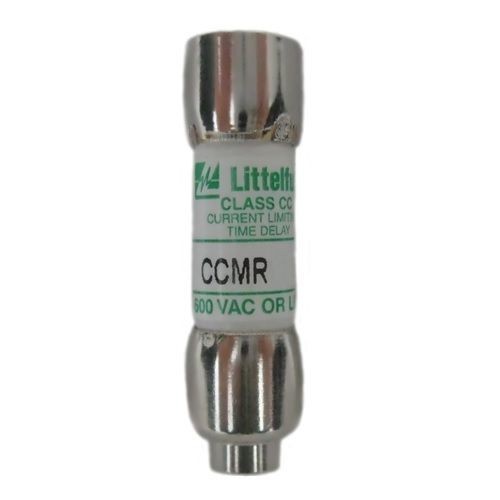

Littelfuse® POWR-GARD® CCMR.250TXP Time Delay Fuse, 0.25 A, 600 VAC/250 VDC, 20/200 kA Interrupt, CC Class, Cartridge Body

Selected Littelfuse® POWR-GARD® CCMR.250TXP Time Delay Fuse, 0.25 A, 600 VAC/250 VDC, 20/200 kA Interrupt, CC Class, Cartridge Body
Littelfuse® POWR-GARD® CCMR.250TXP Time Delay Fuse, 0.25 A, 600 VAC/250 VDC, 20/200 kA Interrupt, CC Class, Cartridge Body

Documents

Short Description

The CCMR series is ideal for space saving protection of motors up to 40 hp. it was designed specifically to withstand sustained starting currents of small motors. the CCMR 60 fuse is the smallest 60 A fuse available rated at 600 V. compared to other UL listed fuses, class CC fuses are the most current-limiting, rating for rating.

Features

  • POWR-PRO® performance
  • 300 kA interrupting rating (self-certified)

Specification

Interrupt Rating
200/20 kA
Mounting Type
Holder
Terminal Type
Ferrule
Voltage Rating
600 VAC/250 VDC
Amperage Rating
0.25 A
Body Style
Cartridge
Class
CC
Series
CCMR
Element
Dual
Body Size
0.41 in Dia x 1.5 in L
Standard & Approvals
248-4 Class CC, UL File No. E81895, 248 Class CD, UL File: E81895, CSA File No. LR29862, CE Certified, RoHS Compliant
Application
Motor and Motor Branch Circuit Protection
Type
Extremely Current-Limiting
