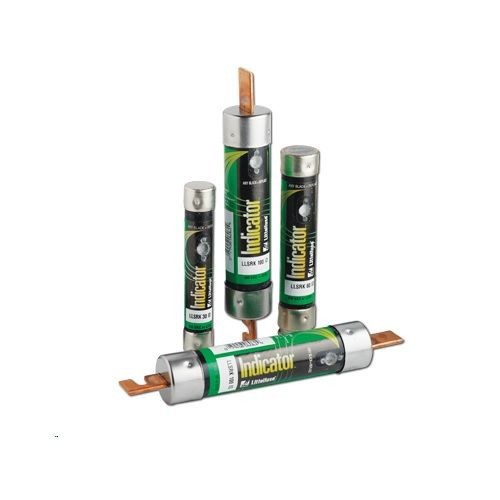

Littelfuse® POWR-GARD® LLSRK.600 Current Limiting Time Delay Fuse, 0.6 A, 600 VAC/300 VDC, 200/20 kA, Class RK1, Cartridge Body

Selected Littelfuse® POWR-GARD® LLSRK.600 Current Limiting Time Delay Fuse, 0.6 A, 600 VAC/300 VDC, 200/20 kA, Class RK1, Cartridge Body
Littelfuse® POWR-GARD® LLSRK.600 Current Limiting Time Delay Fuse, 0.6 A, 600 VAC/300 VDC, 200/20 kA, Class RK1, Cartridge Body

Short Description

Littelfuse® LLNRK and LLSRK series POWR-PRO™ fuses provide superior overload and short circuit protection for service entrance, main, feeder and general-purpose branch circuits up to 600 A. LLNRK/LLSRK series fuses can be installed in existing Class H fuse blocks to upgrade systems containing lower interrupting rating Class H one-time or renewable fuses.

Features

  • Extremely current limiting - reduces damage to circuits and equipment under short circuit conditions
  • Stops damaging short circuits faster than any mechanical protective device
  • Reduced costs - current limiting design often permits use of readily available, less costly equipment
  • Low resistance design reduces power consumption and utility bills
  • Excellent time delay - true dual element construction, with separate non-fatiguing thermally-reversible spring loaded thermal overload element, withstands repeated surges within rated time delay without opening needlessly
  • Eliminates needless downtime caused by power surges or equipment demands
  • 200 kA at 600 VAC, 20 kA at 300 VDC interrupting rating

Specification

Class
RK1
Minimum Order Qty
1
Order Interval
1
Catalog ID
L-FLLSRK.600
Standard & Approvals
RoHS Compliant, UL 248-12, E81895, CSA LR29862, Federal Specification WF-1814, PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
Terminal Type
Ferrule
Voltage Rating
600 VAC/300 VDC
Indicating/Non-Indicating
Non-Indicating
Rejection/Non-Rejection
Rejection
Amperage Rating
0.6 A
Body Size
13/16 in Dia x 5 in L
Body Type
Cartridge
Interrupt Rating
200/20
Mounting Type
Holder
Type
Current Limiting
Element
Dual
Material
Fiberglass
Series
LLSRK
