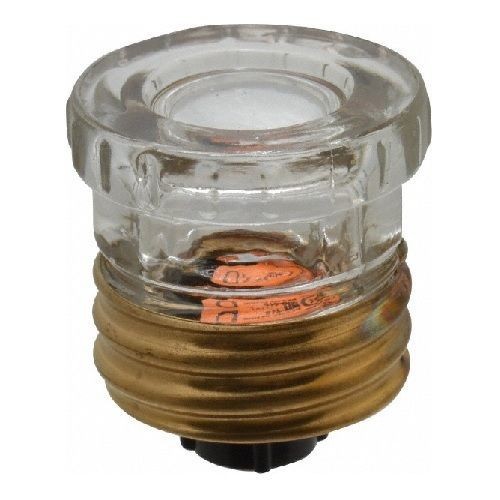

Mersen GW15 Non-Time Delay Plug Fuse, 15 A, 125 VAC, 10 kA, Edison Base Body

Selected Mersen GW15 Non-Time Delay Plug Fuse, 15 A, 125 VAC, 10 kA, Edison Base Body
Mersen GW15 Non-Time Delay Plug Fuse, 15 A, 125 VAC, 10 kA, Edison Base Body

Documents

Short Description

Mersen Plug Fuses are for industrial and residential applications. Standard non-time delay fuses are for receptacle and lighting circuits. Standard time delay fuses are for motor loads. For Canadian requirements, a type "P" fuse is used for non-motor loads and type "D" fuses are used for electric heating and cycling loads circuits. Both fuses have low melting-point temperature elements. Low-Temp time delay plug fuses have thermal sensitivity are also for cycling loads and motor circuits. Type "S" plug fuses are time delay and tamper-resistant.

Features

  • Brass contact
  • Edison base plug body style

Specification

Interrupt Rating
10 kA
Material
Glass
Mounting Type
Threaded
Minimum Order Qty
1
Order Interval
1
Amperage Rating
15 A
Body Size
1.126 in L x 1.29 in W
Catalog ID
GOUGW15
Series
GW
Type
Non-Time Delay
Voltage Rating
125 VAC
Application
Industrial and Residential Applications, Receptacle and Lighting Circuits
Standard & Approvals
UL 248-11, File E76208, CSA Certified, Class 142301, File 15525
