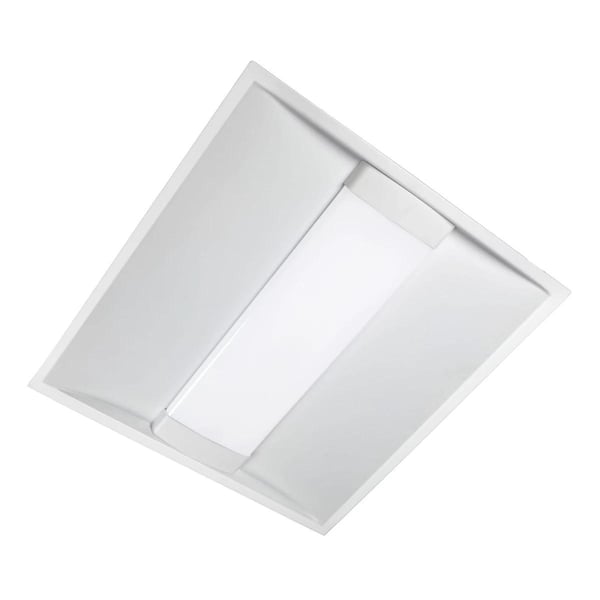

Metalux 22ARS-L3C3-UNV Achieva Troffer, LED Lamp, 33.3 W Fixture, 120 to 277 V
Metalux 22ARS-L3C3-UNV Achieva Troffer, LED Lamp, 33.3 W Fixture, 120 to 277 V
SKU: MET22ARS-L3C3-UNV
Manufacturer Part Number: 22ARS-L3C3-UNV
UPC: 080083282128
Features
- Design friendly with (3) selectable color temperatures and (3) selectable lumen packages
- (3) Selectable CCT in 3500K, 4000K, 5000K in 80+ CRI
- (3) Selectable lumens in standard or HO options up to 8,000
- Ultra slim 1.5 in design for shallow plenum applications
- Up to 146 LPW for increased energy savings and reduced watts per square foot
- DLC Compliant and UL Damp rated with a
- 0-10V Dimming to 5% with 120-277V (UNV) and 120-347V (NUV)
- Ideal for replacing 2-4 lamp fluorescent troffers
- Suitable for recessed, surface, or suspension mounting
- One piece stamped housing delivers improved modern aesthetic look
Specification
| Dimensions | 2 ft L x 2 ft W |
|---|---|
| Color Rendering Index (CRI) | 80 |
| Series | Achieva |
| Amperage Rating | 0.12 A |
| Color Temperature | 5000 K |
| Light Color | Bright White |
| Fixture Wattage | 33.3 W |
| Light Output | 146 Lumens/W |
| Lamp Type | LED |
| Lumens | 4308 Lumens |
| Voltage Rating | 120 to 277 V |
| Ballast Type | 0 to 10 V Dimming |
| Mounting Type | Surface/Recessed |
