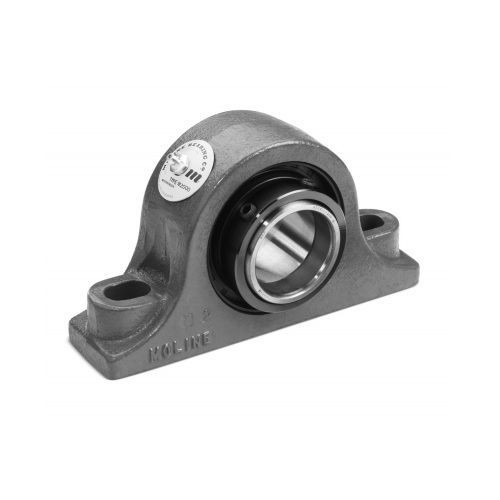

Moline Bearing Company 191-21-203 Pillow Block Bearing, M2000 2-Bolt, 2.1825 in (2 3/16 in) Bore Dia
Moline Bearing Company 191-21-203 Pillow Block Bearing, M2000 2-Bolt, 2.1825 in (2 3/16 in) Bore Dia
SKU: MOL191-21-203
Manufacturer Part Number: 191-21-203
UPC: 130000002534
Documents
Features
- Solid cast iron housing with center support
- Large diameter rollers for optimum capacity
- Triple-lip contact type seals
- Set screws secure cone to shaft
- Elongated bolt holes permit adjustment and increased mounting options
- Rotating center guide ring for least possible friction
Specification
| Locking Device | Set Screw |
|---|---|
| Material | Cast Iron |
| Bolt Center-to-Center Length | 6.75 in (6 3/4 in) |
| Overall Length | 8.875 in (8 7/8 in) |
| Series | M2000 2-Bolt |
| Type | Pillow Block Bearing |
| Bore Diameter | 2.1825 in (2 3/16 in) |
