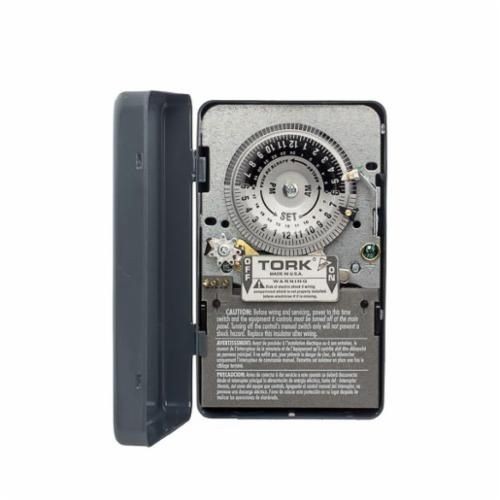

NSI Tork® 7100 7000 Skip-A-Day On/Off Mechanical Time Switch, 24 hr Time Setting, 120 VAC, 2 hp, SPST Contact Form, 1 Poles
NSI Tork® 7100 7000 Skip-A-Day On/Off Mechanical Time Switch, 24 hr Time Setting, 120 VAC, 2 hp, SPST Contact Form, 1 Poles
SKU: TOR7100
Manufacturer Part Number: 7100
UPC: 786261100016
Features
- 60 Hz frequency
- Minimum On setting is 20 min with minimum Off setting at 75 min
- Dial accommodates up to 12 pairs of trippers
- Omit operations on any day with a 7 spoke wheel marked with days of the week
- 14 to 8 AWG terminal range
- 3 or 5 W power consumption
- Lockable hasp enclosure
- Metal indoor enclosure
Specification
| Mounting Type | Threaded |
|---|---|
| Number Of Poles | 1 |
| Operation Mode | 24 |
| Series | 7000 |
| Temperature Rating | -40 to 165 |
| Time Setting | 24 |
| Type | Skip-A-Day On/Off |
| Voltage Rating | 120 V |
| Application | Lighting, Heating, Pumps, Air Conditioning and Sign Control |
| Standard & Approvals | ARRA, Buy American Act Compliant, UL Listed, CSA Certified |
| Amperage Rating | 40 A |
| Dimensions | 4.687 in L x 2.937 in W x 7.937 in H |
| Contact Form | SPST |
| Enclosure Type | NEMA 1 |
| Includes | (3) Omitting Screws |
| Horsepower | 2 hp |
