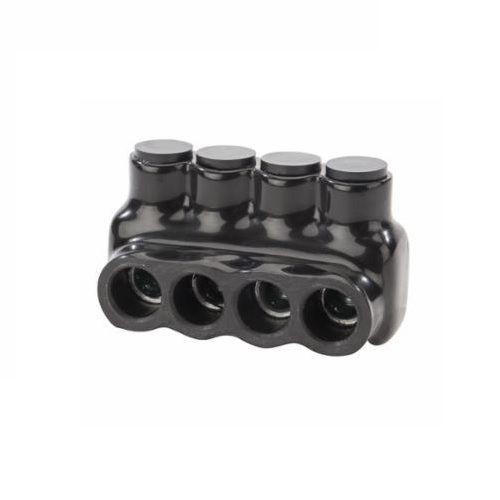

NSI Polaris™ IPL1/0-4 Single Sided Entry Insulated Multi-Tap Connector, 14 to 1/0 AWG Aluminum/Copper Conductor, Plastisol

Selected NSI Polaris™ IPL1/0-4 Single Sided Entry Insulated Multi-Tap Connector, 14 to 1/0 AWG Aluminum/Copper Conductor, Plastisol
NSI Polaris™ IPL1/0-4 Single Sided Entry Insulated Multi-Tap Connector, 14 to 1/0 AWG Aluminum/Copper Conductor, Plastisol

Short Description

Polaris™ in original black. The centerpiece of NSI incredible product offering, Polaris™ in original black is the insulated connector that every other connector copies. Its introduction marked the beginning of a new age, providing the fastest, safest, most professional connection possible.

Features

  • Insulated with dielectric strength plastisol for tough mechanical protection
  • Molded for precise fit and supplied with removable access plugs over the hex screws
  • Wire entry ports on one side only
  • Eliminates the need for cover and taping
  • Will not support combustion
  • Not recommended for fine stranded, flexible wire
  • Dual rated multi-conductor connector for use with copper and/or aluminum cables

Specification

Material
Plastisol
Minimum Order Qty
1
Order Interval
1
Catalog ID
NSIIPL1/0-4
Conductor Size
14 to 1/0 AWG
Conductor Type
Aluminum/Copper
Dimensions
2.89 in L x 1.5 in W x 1.688 in H
Finish
Black
Temperature Rating
-45 to 90 deg C
Type
Single Sided Entry
Voltage Rating
600 V
Application
For aluminum and copper cables and wire termination
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Series
IPL
Specifications
1 Pole, 4 Conductor, Class B and C Wire Type, 3/16 in Hex
