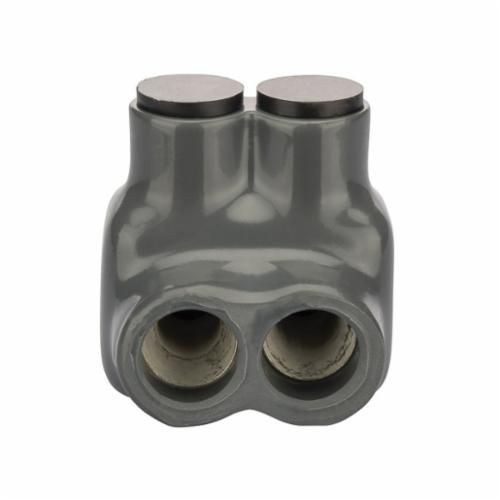

NSI Polaris™ ITG-1 ITG Insulated Multi-Tap Connector, 10 to 1 AWG (Class B, C, D)/10 to 2 AWG (Class K, M, I) Copper Conductor, Plastisol

Selected ITG-1NSI Polaris™ ITG-1 ITG Insulated Multi-Tap Connector, 10 to 1 AWG (Class B, C, D)/10 to 2 AWG (Class K, M, I) Copper Conductor, Plastisol
ITG-1NSI Polaris™ ITG-1 ITG Insulated Multi-Tap Connector, 10 to 1 AWG (Class B, C, D)/10 to 2 AWG (Class K, M, I) Copper Conductor, Plastisol

Documents

Short Description

Perfect for motors. Polaris Grey provides the unique ability to connect or terminate fine stranded, flexible, and ultra-flexible copper cable whenever maintenance or repair are required. With an integral sleeve that protects fine strands and reduces stress on the conductor, you can connect, disconnect, and reconnect with ease.

Features

  • Insulated with dielectric strength plastisol for tough mechanical protection
  • Supplied with removable access plugs over the hex screws to protect against contamination
  • Eliminates the need for cover and taping
  • Will not support combustion
  • Re-usable
  • Factory applied insulation provides consistent quality and protection
  • Suitable for connecting two wires and designed for use with fine-stranded flexible copper conductors
  • 6/Carton

Specification

Minimum Order Qty
1
Order Interval
1
Catalog ID
NSIITG-1
Standard & Approvals
CU9 Rated, cULus Listed, UL 486A Listed
Temperature Rating
-45 to 90 deg C
Voltage Rating
600 VAC
Conductor Size
(Class B, C, D) 1 - 10 AWG and (Class K, M, I) 2 - 10 AWG
Conductor Type
Copper
Includes
DLO Cable and Motor Lead Wire
Finish
Grey
Dimensions
1.6 in L x 1.55 in W x 1.75 in H
Specifications
1 Pole, 2 Conductors, B, C, D, K, M, I Wire type, 3/16 in Hex
Resistance
Abrasion, Chemical
Material
Plastisol
Series
ITG
