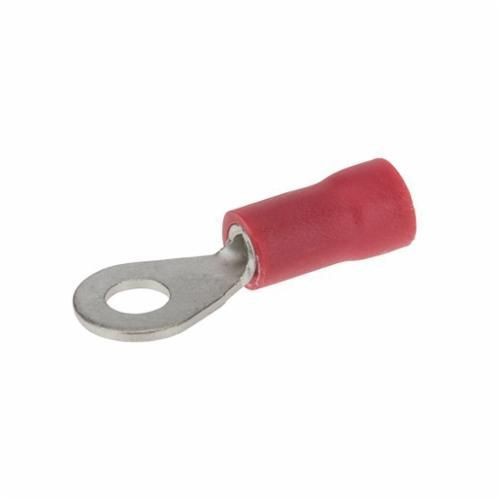

NSI Miniterms R22-10V-S R Series Ring Terminal, 22 to 18 AWG Conductor, 0.826 in L, Brazed Seam Barrel, Copper, Red
NSI Miniterms R22-10V-S R Series Ring Terminal, 22 to 18 AWG Conductor, 0.826 in L, Brazed Seam Barrel, Copper, Red
SKU: NSIR22-10V-S
Manufacturer Part Number: R22-10V-S
UPC: 662381060525
Documents
Features
- Vinyl insulated
- Safe and reliable connections because it cannot be disconnected unless the screw is completely removed
- 25 Pieces/Pack
Specification
| Length | 0.826 in |
|---|---|
| Material | Copper |
| Stud Size | NO 10 |
| Temperature Rating | 75 deg C |
| Tongue Size | 0.314 in W |
| Tongue Type | Ring |
| Type | Insulated |
| Voltage Rating | 300 VAC |
| Standard & Approvals | cULus Listed |
| Conductor Size | 22 to 18 AWG |
| Barrel Type | Brazed Seam |
| Color | Red |
| Finish | Tin Plated |
| Series | R |
| Application | For Wire Termination |
