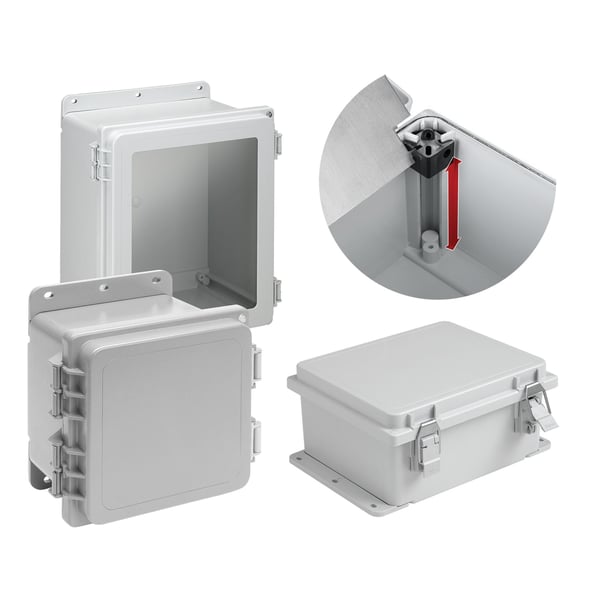

nVent HOFFMAN POLYPRO™ A10106PHC PCR Lightweight Enclosure, 10.05 in L x 10.05 in W x 6.38 in D, NEMA 4X/IP66 NEMA Rating, Polyester

Selected nVent HOFFMAN A10106PHC
nVent HOFFMAN A10106PHC

Documents

Short Description

PolyPro polyester enclosures perform exceptionally well in applications where harsh chemicals, weather extremes and corrosive environments demand toughness from a lightweight enclosure. Providing excellent ultraviolet protection and a tight environmental seal, these versatile, feature-rich enclosures are also recyclable.

Features

  • Non-glass-filled polyester material offers superior UV resistance, eliminates fiberbloom associated with fiberglass
  • Provides excellent chemical resistance to a broad range of solvents, alkalis and acids
  • Lighter-weight than fiberglass
  • Recyclable
  • Easy, dustless in-field modifications using standard tools
  • Overlapping tongue-and-groove raised cover and gasket provide a secure Type 4X seal
  • Removable snap-hinge cover allows for easy access to cover and body for modifications
  • Molded layout grid on inside of body and solid covers assists with component mounting
  • Molded-in embosses for rear panel mounting

Specification

Material
Polyester
Mounting Type
Wall
Type
Lightweight
NEMA Rating
NEMA 4X/IP66
Color
Light Gray
Lock
Padlock
Length
10.05 in
Panel Size
8.88 in W x 8.75 in H
Cover Type
Snap-Hinged
Series
PCR
Width
10.05 in
Depth
6.38 in
