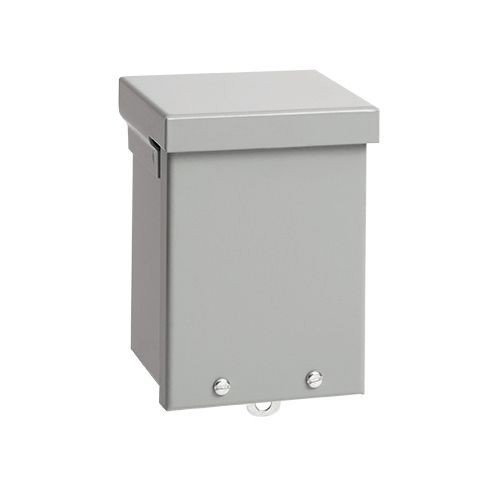

nVent HOFFMAN A12R128NK A Style Body Enclosure, 12 in H x 12 in W x 8 in D, Screw Cover, NEMA 3R/IP32 NEMA Rating, Steel
nVent HOFFMAN A12R128NK A Style Body Enclosure, 12 in H x 12 in W x 8 in D, Screw Cover, NEMA 3R/IP32 NEMA Rating, Steel
SKU: HOFA12R128NK
Manufacturer Part Number: A12R128NK
UPC: 783510135133
Documents
Short Description
Features
- 16, 14 or 12 ga galvanized steel
- Drip shield top and seam-free sides, front and back
- Slip-on removable cover fastened with plated steel screws along bottom edge
- Handles on larger sizes
- Embossed mounting holes on back of enclosure
- Knockouts in bottom of 16 and 14 ga enclosures
- Provision for padlocking
- No gasketing
Specification
| Width | 12 in |
|---|---|
| Standard & Approvals | cUL Listed, CSA C22.2 File No. 94, File No. E27525, UL 50, UL 50E Listed File No. E27525, IEC 60529 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | HOFA12R128NK |
| Color | Gray |
| Cover Type | Screw |
| Depth | 8 in |
| Finish | Galvanized |
| Height | 12 in |
| Lock | Padlock |
| Material | Steel |
| Mounting Type | Wall |
| NEMA Rating | NEMA 3R/IP32 |
| Application | For outdoor application as a wiring or junction box |
| Type | A Style Body |
| Series | A90S3 |
