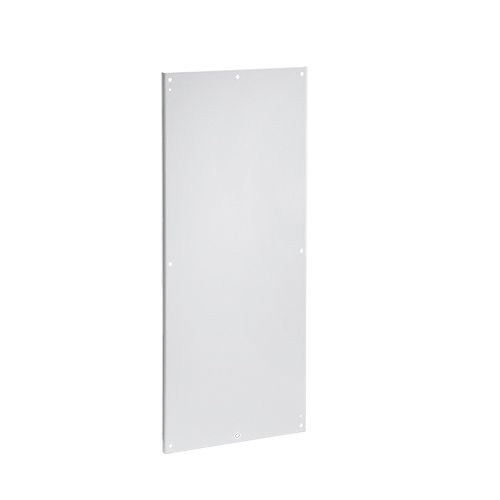

nVent HOFFMAN A60P48F1 PNL30 Full Enclosure Panel, 44 in W x 48 in H, 10 ga Steel, White

Selected A60P48F1nVent HOFFMAN A60P48F1 PNL30 Full Enclosure Panel, 44 in W x 48 in H, 10 ga Steel, White
A60P48F1nVent HOFFMAN A60P48F1 PNL30 Full Enclosure Panel, 44 in W x 48 in H, 10 ga Steel, White

Documents

Short Description

Panels for two-door single access and two-door dual access Free-Stand Type 4, 4X and 12 Enclosures with mounting channel are 11 gauge steel and can be positioned anywhere along horizontal mounting channels (see Sections B-B for limitations). Half-length panels can be located in the upper or lower portion of the enclosure. Some assembly is required. Panels are finished with white polyester powder paint or a conductive, corrosion-resistant coating and furnished with plated mounting hardware. Center support is furnished with each full panel or half panel for two-door enclosures. The center support attaches to the top and bottom mounting channels and can be positioned from front to back in the enclosure. The center support can be used with heavy duty panel supports to support panels of various heights.

Specification

Minimum Order Qty
1
Order Interval
1
Catalog ID
HOFA60P48F1
Color
White
Finish
Polyester Powder Painted
Material
10 ga Steel
Height
48 in
Width
44 in
Type
Full
Suitable For Use With
60.06 x 48.06 in Type 4/4X/12 2-Door Free-Standing Enclosure with Mounting Channel
Series
PNL30
