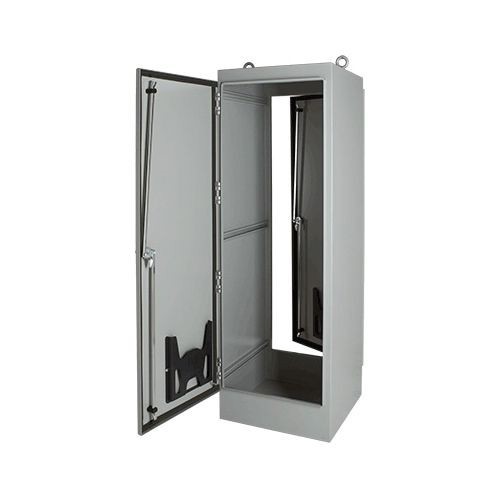

nVent HOFFMAN A907224FSDG A30 2-Door Single Access Enclosure, 90.06 in L x 72.06 in W x 24.06 in D, NEMA 12/IP55 NEMA Rating, Steel

Pick Up Only
Selected A907224FSDGnVent HOFFMAN A907224FSDG A30 2-Door Single Access Enclosure, 90.06 in L x 72.06 in W x 24.06 in D, NEMA 12/IP55 NEMA Rating, Steel
A907224FSDGnVent HOFFMAN A907224FSDG A30 2-Door Single Access Enclosure, 90.06 in L x 72.06 in W x 24.06 in D, NEMA 12/IP55 NEMA Rating, Steel

Documents

Short Description

Available with front or front and rear access, these Type 12 enclosures have sturdy unibody construction and flexible internal mounting options.

Features

  • Seams continuously welded and ground smooth, no holes or knockouts
  • Stiffeners on back of 2-door enclosures maintain flatness and increase rigidity
  • Lifting eyes for easy handling
  • 3-point latches operated by oiltight keylocking handle
  • Concealed, easy to remove hinges
  • Data pocket is high impact thermoplastic
  • Internal mounting channels welded horizontally to sides at top, bottom and center
  • Oil-resistant door gasket
  • Optional panels and rack mount angles can be mounted anywhere along channels
  • Bonding provision on door
  • Provision for mounting fluorescent light
  • 12 ga steel

Specification

Length
90.06 in
Material
Steel
NEMA Rating
NEMA 12/IP55
Minimum Order Qty
1
Order Interval
1
Color
Gray
Depth
24.06 in
Finish
Polyester Powder Painted
Standard & Approvals
cUL Listed per CSA C22.2 File No. 94 File No. E61997, 42186, E.I.A. RS310D, IEC 60529, UL 508A File No. E61997 Listed
Width
72.06 in
Type
2-Door Single Access
Series
A30
Catalog ID
HOFA907224FSDG
Mounting Type
Freestanding
Lock
3-Point Latch/Keyed Handle
