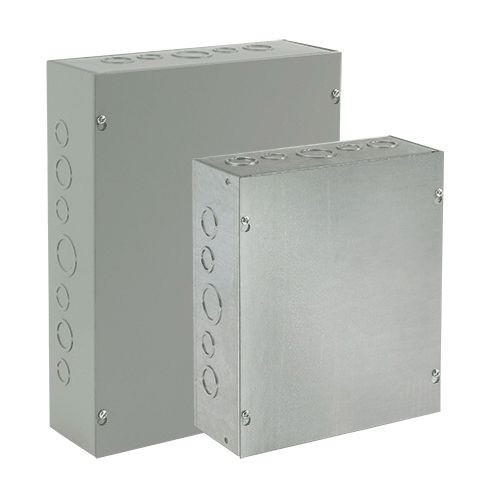

nVent HOFFMAN ASE10X10X6NK A90P1 Pull Box, 10 in W x 6 in D x 10 in H, Screw Cover, NEMA 1/IP30, Steel

Selected ASG8X8X8NKnVent HOFFMAN ASE10X10X6NK A90P1 Pull Box, 10 in W x 6 in D x 10 in H, Screw Cover, NEMA 1/IP30, Steel
ASG8X8X8NKnVent HOFFMAN ASE10X10X6NK A90P1 Pull Box, 10 in W x 6 in D x 10 in H, Screw Cover, NEMA 1/IP30, Steel

Short Description

Use this enclosure in commercial and general industrial applications that require a junction or pull box. For flush installations, order flush covers and door frames separately.

Features

  • 16, 14 or 12 ga steel or plated steel
  • Unique keyhole screw slots in the cover
  • Optional flush-mounted door frame available
  • Optional flush covers
  • Flat, removable covers fastened with plated steel screws
  • Provision for grounding
  • Mounting holes on back of box
  • For flush installations, order flush covers and door frames separately
  • Without knockout

Specification

Height
10 in
Material
Steel
Mounting Type
Flush
NEMA Rating
NEMA 1/IP30
Minimum Order Qty
1
Order Interval
1
Catalog ID
HOFASE10X10X6NK
Color
Gray
Cover Type
Screw
Depth
6 in
Finish
Polyester Powder Painted
Series
A90P1
Width
10 in
Standard & Approvals
cUL Listed per CSA C22.2 File No. 40 File No. E27525, IEC 60529, UL 50/50E Listed File No. E27525
