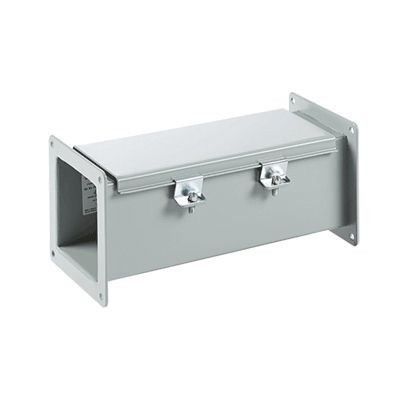

nVent HOFFMAN F88W48 F20 Feed Through Straight Section Wireway, 48 in L x 8 in W x 8 in H, Butt Hinged Cover, Steel
nVent HOFFMAN F88W48 F20 Feed Through Straight Section Wireway, 48 in L x 8 in W x 8 in H, Butt Hinged Cover, Steel
SKU: HOFF88W48
Manufacturer Part Number: F88W48
UPC: 783510146504
Features
- Seams continuously welded and ground smooth
- No holes or knockouts
- Smooth, rounded edges on all sections and fittings
- Oil resistant gasket and adhesive
- Heavy butt hinges and external screw clamps
- ANSI 61 gray polyester powder paint finish inside and out over pretreated surfaces
Specification
| Height | 8 in |
|---|---|
| Length | 48 in |
| Material | Steel |
| NEMA Rating | NEMA 12 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | HOFF88W48 |
| Color | Gray |
| Cover Type | Butt Hinged |
| Finish | Polyester Powder Painted |
| Series | F20 |
| Type | Feed Through Straight Section |
| Width | 8 in |
| Application | For broad range of industrial applications |
| Standard & Approvals | UL 870 File No. E27524, CSA File No. 42184, IEC 60529, JIC Standards EGP-1-1967/EMP-1-1967 |
