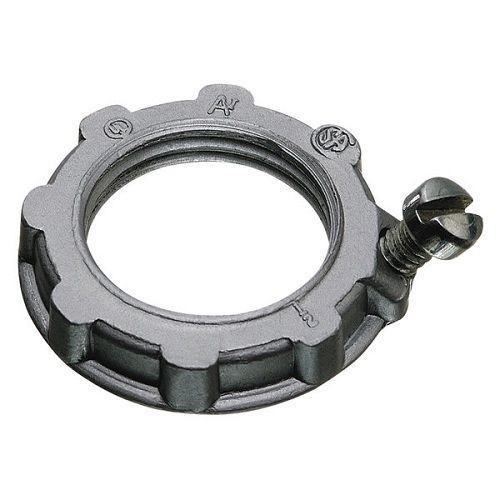

O-Z/Gedney 102 Standard Type 101 Bonding Wedge Locknut, 3/4 in, For Use With EMT/Rigid Conduit Fittings, Malleable Iron, Zinc Plated

Selected 102O-Z/Gedney 102 Standard Type 101 Bonding Wedge Locknut, 3/4 in, For Use With EMT/Rigid Conduit Fittings, Malleable Iron, Zinc Plated
102O-Z/Gedney 102 Standard Type 101 Bonding Wedge Locknut, 3/4 in, For Use With EMT/Rigid Conduit Fittings, Malleable Iron, Zinc Plated

Documents

Short Description

We offer a complete selection of steel, malleable iron and zinc fittings for rigid conduit and IMC. threaded and threadless, insulated or uninsulated non-insulated, watertight or general purpose, our conduit fittings, straps and accessories are available in all the sizes and configurations required to connect and support rigid conduit and to bond it to virtually any type of junction box or enclosure.

Features

  • Right hand thread direction
  • Type-101

Specification

Material
Malleable Iron
Size
3/4 in
Suitable For Use With
Rigid/EMT Conduit
Type
Standard
Application
Used with bushings to bond 1/2 through 6 in rigid conduit and IMC to boxes, cabinets or other enclosures
Standard & Approvals
UL 467, CSA C22.2 No 41, NEMA FB-1
Finish
Zinc Plated
Dimensions
1-3/8 in W x 1/4 in H
