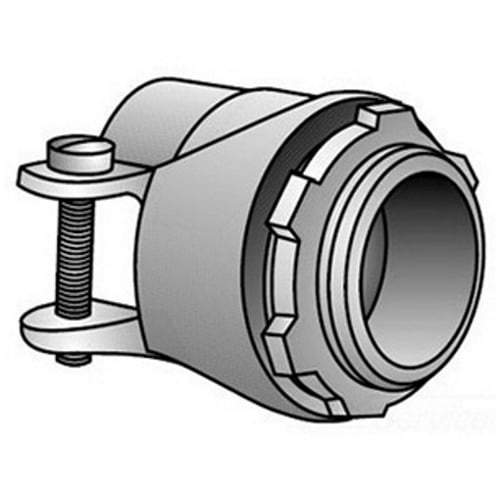

O-Z/Gedney 24-100 Type 24 Straight Squeeze Conduit Connector With Locknut, 1 in Trade, 1-9/32 to 1-7/16 in Cable Openings, For Use With Armored/FMC Cable, Malleable Iron, Zinc Electroplated

Selected Data-Spec SheetO-Z/Gedney 24-100 Type 24 Straight Squeeze Conduit Connector With Locknut, 1 in Trade, 1-9/32 to 1-7/16 in Cable Openings, For Use With Armored/FMC Cable, Malleable Iron, Zinc Electroplated
Data-Spec SheetO-Z/Gedney 24-100 Type 24 Straight Squeeze Conduit Connector With Locknut, 1 in Trade, 1-9/32 to 1-7/16 in Cable Openings, For Use With Armored/FMC Cable, Malleable Iron, Zinc Electroplated

Documents

Features

  • Male NPS hub x screw clamp connection
  • 9/16 in thread length
  • Centre stopped
  • Zinc Electroplated

Specification

Material
Malleable Iron
Minimum Order Qty
1
Order Interval
1
Finish
Zinc Plated
Suitable For Use With
Armored Cable and Flexible Metal Conduit
Trade Size
1 in
Application
For grounding and securing armored cable and flexible metal conduit to boxes and enclosures
Standard & Approvals
UL 514B/E11852 Listed, CSA 9795/C22.2 No 18 Certified, Federal Specification W-F-406E, NEMA FB-1, NEC 501-4(b), Class I, Division II, NEC 350-5, RoHS Compliant
Type
Type 24 Straight
Dimensions
1-3/16 in L x 2-3/16 in W
Catalog ID
OZG24-100
Cable Openings
1-9/32 - 1-7/16 in
