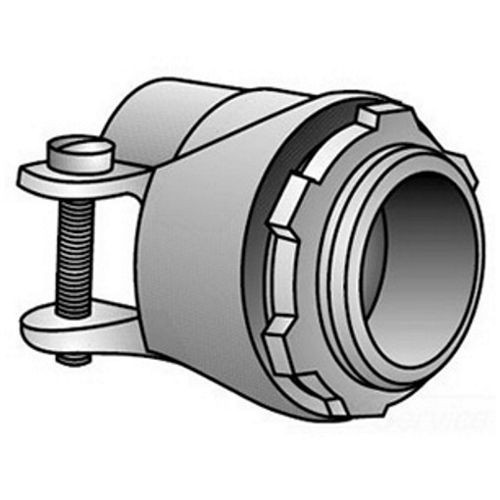

O-Z/Gedney 24-100T Type 24 Center Stopped Insulated Throat Straight Squeeze Cable Connector, 1 in Trade, 1-9/32 to 1-7/16 in Cable Openings, Malleable Iron, Electroplated Zinc
O-Z/Gedney 24-100T Type 24 Center Stopped Insulated Throat Straight Squeeze Cable Connector, 1 in Trade, 1-9/32 to 1-7/16 in Cable Openings, Malleable Iron, Electroplated Zinc
SKU: OZG24-100T
Manufacturer Part Number: 24-100T
UPC: 783126712384
Documents
Specification
| Material | Malleable Iron |
|---|---|
| Trade Size | 1 in |
| Standard & Approvals | ARRA Compliant, CSA C22.2 No. 18, CSA 009795, UL File No. E11853, UL 514B, NEC 501-4(b) Class I Division II, NEC 350-5, Federal Specification W-F-406E |
| Angle | 90 deg |
| Includes | Locknut |
| Finish | Electroplated Zinc |
| Cable Type | Armored |
| Dimensions | 1.19 in L x 2.19 in W |
| Connection Type | Male NPS Hub x Screw Clamp |
| Cable Openings | 1-9/32 to 1-7/16 in |
| Application | For grounding and securing armored cable and flexible metal conduit to boxes and enclosures |
| Type | Type 24 Center Stopped Insulated Throat Straight |
