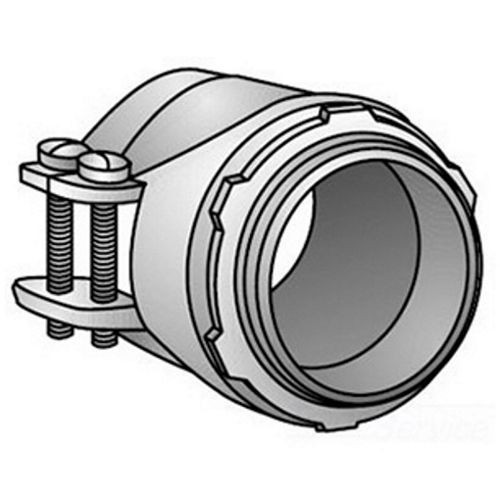

O-Z/Gedney 24-150T Type 24 Center Stopped Insulated Throat Straight Squeeze Cable Connector, 1-1/2 in Trade, 1-5/8 to 1-7/8 in Cable Openings, Malleable Iron, Electroplated Zinc
O-Z/Gedney 24-150T Type 24 Center Stopped Insulated Throat Straight Squeeze Cable Connector, 1-1/2 in Trade, 1-5/8 to 1-7/8 in Cable Openings, Malleable Iron, Electroplated Zinc
SKU: OZG24-150T
Manufacturer Part Number: 24-150T
UPC: 783126712483
Documents
Features
Specification
| Material | Malleable Iron |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Angle | 90 deg |
| Cable Openings | 1-5/8 to 1-7/8 in |
| Catalog ID | OZG24-150T |
| Connection Type | Male NPS Hub x Screw Clamp |
| Dimensions | 1.88 in L x 2.63 in W |
| Trade Size | 1-1/2 in |
| Standard & Approvals | ARRA Compliant, CSA C22.2 No. 18, CSA 009795, UL File No. E11853, UL 514B, NEC 501-4(b) Class I Division II, NEC 350-5, Federal Specification W-F-406E |
| Type | Type 24 Center Stopped Insulated Throat Straight |
| Finish | Electroplated Zinc |
| Cable Type | Armored |
| Includes | Locknut |
