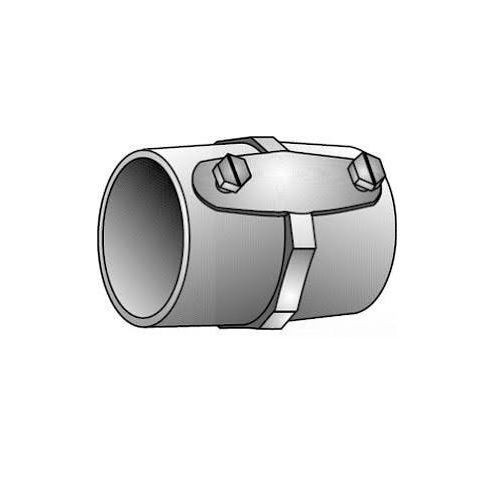

O-Z/Gedney 29-125 Type 29 Set Screw Coupling, 1-1/4 in, For Use With Threadless Rigid/IMC Conduit, Malleable Iron, Mechanically Galvanized

Selected 29-125O-Z/Gedney 29-125 Type 29 Set Screw Coupling, 1-1/4 in, For Use With Threadless Rigid/IMC Conduit, Malleable Iron, Mechanically Galvanized
29-125O-Z/Gedney 29-125 Type 29 Set Screw Coupling, 1-1/4 in, For Use With Threadless Rigid/IMC Conduit, Malleable Iron, Mechanically Galvanized

Documents

Short Description

Appleton Group offers a complete selection of steel, malleable iron and zinc fittings for rigid conduit and IMC. Threaded and threadless, insulated or uninsulated, watertight or general purpose – our conduit fittings, straps and accessories are available in all the sizes and configurations required to support, connect and bond rigid conduit to virtually any type of junction box or enclosure.

Features

  • Concrete-tight

Specification

Material
Malleable Iron
Minimum Order Qty
1
Order Interval
1
Catalog ID
OZG29-125
Dimensions
2-1/8 in OD x 2-3/4 in L
Finish
Mechanically Galvanized
Size
1-1/4 in
Suitable For Use With
Threadless IMC/Rigid Conduit
Type
Type 29 Set Screw
Application
To Couple sections of threadless rigid conduit together
Standard & Approvals
UL File No. E-11853, UL 514A, Federal Specification Number/CID A-A-50563, ANSI/NEMA FB-1
