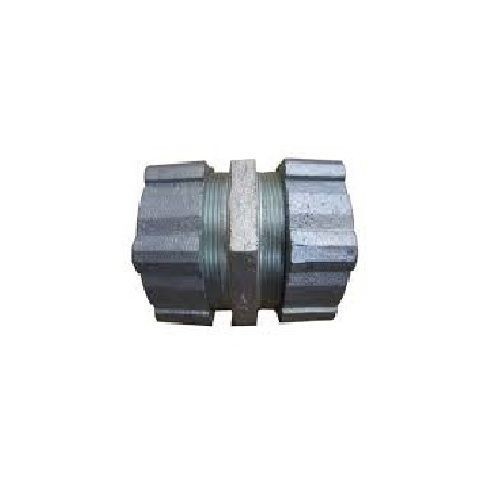

O-Z/Gedney 30-400 Type 30 Set Screw Coupling, 4 in, For Use With Threadless Rigid/IMC Conduit, Malleable Iron, Zinc Plated

Selected O-Z/Gedney 30-400 Type 30 Set Screw Coupling, 4 in, For Use With Threadless Rigid/IMC Conduit, Malleable Iron, Zinc Plated
O-Z/Gedney 30-400 Type 30 Set Screw Coupling, 4 in, For Use With Threadless Rigid/IMC Conduit, Malleable Iron, Zinc Plated

Documents

Short Description

Appleton Group offers a complete selection of steel, malleable iron and zinc fittings for rigid conduit and IMC. Threaded and threadless, insulated or uninsulated, watertight or general purpose – our conduit fittings, straps and accessories are available in all the sizes and configurations required to support, connect and bond rigid conduit to virtually any type of junction box or enclosure.

Features

  • Concrete-tight
  • Available with insulated throat
  • Zinc Electroplated

Specification

Material
Malleable Iron
Size
4 in
Suitable For Use With
Rigid Conduit
Type
Type 30 Gland
Standard & Approvals
UL File No. E-11853, UL 514B, Federal Specification W-F-408E, NEMA FB-1
Finish
Zinc Plated
Dimensions
6-1/8 in OD x 4-9/16 in L
