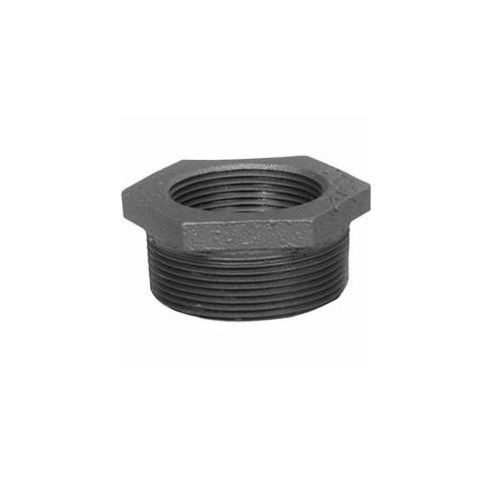

O-Z/Gedney 322-R Type 300R Hex Reducing Bushing, 1 x 3/4 in Trade, Malleable Iron, Zinc Electroplated

Selected O-Z/Gedney 322-R Type 300R Hex Reducing Bushing, 1 x 3/4 in Trade, Malleable Iron, Zinc Electroplated
O-Z/Gedney 322-R Type 300R Hex Reducing Bushing, 1 x 3/4 in Trade, Malleable Iron, Zinc Electroplated

Documents

Short Description

O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.

Features

  • Hex reducing bushings reduce a threaded conduit entry to a smaller trade size
  • Provided with hex shoulder
  • 5/8 in thread length
  • 3/16 in flange thickness

Specification

Material
Malleable Iron
Trade Size
1 x 3/4 in
Type
Type 300R Threaded
Standard & Approvals
UL 514B/E11853, CSA 009795/C22.2 No.18, Federal Specification W-F-408E, NEMA FB-1, RoHS Complaint
Dimensions
1-5/8 in W
Finish
Electro-Zinc Plated
