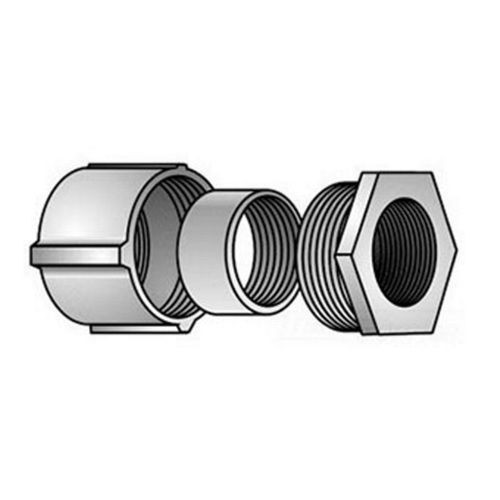

O-Z/Gedney 4-75 3-Piece Type 4 Rigid Conduit Coupling, 3/4 in, For Use With IMC/Rigid Conduit, Malleable Iron, Zinc Plated

Selected O-Z/Gedney 4-75 3-Piece Type 4 Rigid Conduit Coupling, 3/4 in, For Use With IMC/Rigid Conduit, Malleable Iron, Zinc Plated
O-Z/Gedney 4-75 3-Piece Type 4 Rigid Conduit Coupling, 3/4 in, For Use With IMC/Rigid Conduit, Malleable Iron, Zinc Plated

Documents

Short Description

O-Z/Gedney threaded three piece couplings join two lengths of conduit when neither can be turned. Elbows provide a 90 deg change of direction in a conduit run. Gasket elbows also provide a compact wire pulling point.

Features

  • Couples conduits when conduits can not be turned
  • Concrete tight

Specification

Material
Malleable Iron
Mounting Type
Threaded
Minimum Order Qty
1
Order Interval
1
Finish
Zinc Plated
Size
3/4 in
Suitable For Use With
IMC/Rigid Conduit
Standard & Approvals
ARRA Compliant, UL E-11853, UL 514B, CSA 009795, CSA C22.2 No.18, Federal Specification Number, CID A-A-50563, ANSI, NEMA FB-1
Type
3-Piece Type 4
Dimensions
1-3/4 in OD x 1-5/8 in L
Catalog ID
OZG4-75
Application
For Rigid Conduit and IMC
