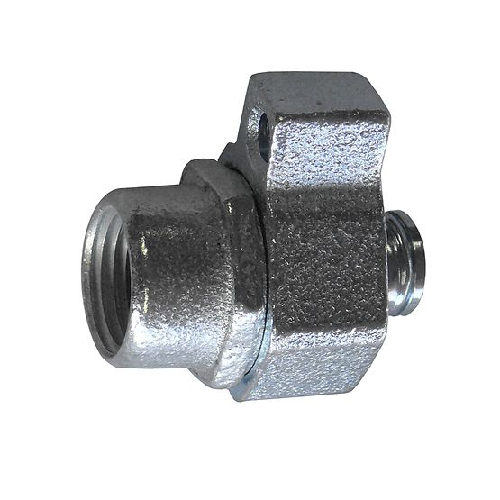

O-Z/Gedney Ground-Tite® 4Q-250L Concretetight Liquid Tight Oiltight Positive Grounding Raintight Conduit Connector With Lug, 2-1/2 in Trade, 1 to 4/0 AWG Cable Openings, Straight, Malleable Iron, Zinc Electroplated

Selected 4Q-250LO-Z/Gedney Ground-Tite® 4Q-250L Concretetight Liquid Tight Oiltight Positive Grounding Raintight Conduit Connector With Lug, 2-1/2 in Trade, 1 to 4/0 AWG Cable Openings, Straight, Malleable Iron, Zinc Electroplated
4Q-250LO-Z/Gedney Ground-Tite® 4Q-250L Concretetight Liquid Tight Oiltight Positive Grounding Raintight Conduit Connector With Lug, 2-1/2 in Trade, 1 to 4/0 AWG Cable Openings, Straight, Malleable Iron, Zinc Electroplated

Documents

Short Description

For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquid-tight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.

Features

  • Tapered MNPT Hub Connection
  • O-Z/Gedney cuttings are used with liquid-tight flexible metal conduit to provide a dependable connection and are suitable for use in wet locations
  • UL Listed NEMA type 4 when installed into a NPT threaded entry or UL Listed conduit hub
  • For Trade Sizes 1-1/4 in and larger, an internal or external equipment bonding conductor is required
  • Grounding lug is cast as an integral part of malleable iron gland nut. Provides high ground fault withstand capability
  • Compact, slim diameter with small turning radius
  • Furnished with locknut and KO sealing ring
  • Liquid tight/Raintight/Oiltight/Concrete tight
  • Bonding Wedge Locknuts are recommended in Hazardous Locations
  • Long ferrule prevents pull-out and tight bend conduit pop-out
  • Inspection windows in ferrule to ensure full engagement
  • 1 in L thread
  • 2-3/4 in turning radius gland nut
  • Malleable Iron Body and Nut, Steel Ferrule

Specification

Material
Malleable Iron
Angle
Straight
Application
For Secure, ground and seal liquid-tight flexible metal conduit and terminates bonding conductor run externally alongside liquid-tight conduit
Trade Size
2-1/2 in
Cable Openings
1 - 4/0 AWG
Dimensions
2.94 in H x 4-5/8 in W
Suitable For Use With
Liquidtight Flexible Metallic Conduit
Standard & Approvals
UL 467, CSA C22.2 No.41, Federal Specification W-F-406E, NEMA : FB-1, Hazardous Locations: Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20, RoHS Complaint
Finish
Zinc Electroplated
