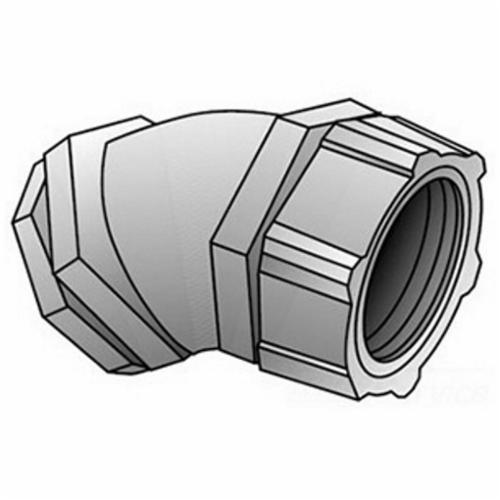

O-Z/Gedney 4Q-4300 Concretetight Liquid Tight Oiltight Raintight Conduit Connector, 3 in Trade, 45 deg, Malleable Iron, Zinc Electroplated

Selected 4Q-4400O-Z/Gedney 4Q-4400 Concretetight Liquid Tight Oiltight Raintight Conduit Connector, 4 in Trade, 45 deg, Malleable Iron, Zinc Electroplated
4Q-4400O-Z/Gedney 4Q-4400 Concretetight Liquid Tight Oiltight Raintight Conduit Connector, 4 in Trade, 45 deg, Malleable Iron, Zinc Electroplated

Documents

Short Description

For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquid-tight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.

Features

  • O-Z/Gedney cuttings are used with liquid-tight flexible metal conduit to provide a dependable connection and are suitable for use in wet locations
  • Compact, slim diameter with small turning radius, Furnished with locknut and knockout sealing ring
  • UL listed NEMA type 4 when installed into a NPT threaded entry or UL listed conduit hub
  • Furnished with locknut and knockout sealing ring
  • Intrinsically safe
  • Inspection windows in ferrule to ensure full engagement
  • Reusable ferrule
  • 1-1/8 in L thread
  • Malleable Iron Body and Nut, Steel Ferrule

Specification

Material
Malleable Iron
Minimum Order Qty
1
Order Interval
1
Angle
45 deg
Finish
Zinc Electroplated
Trade Size
3 in
Standard & Approvals
UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, NEMA : FB-1, Hazardous Locations: Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20, RoHS Complaint
Suitable For Use With
Liquidtight Flexible Metallic Conduit
Dimensions
6 in H x 4-7/8 in W
Catalog ID
OZG4Q-4300
