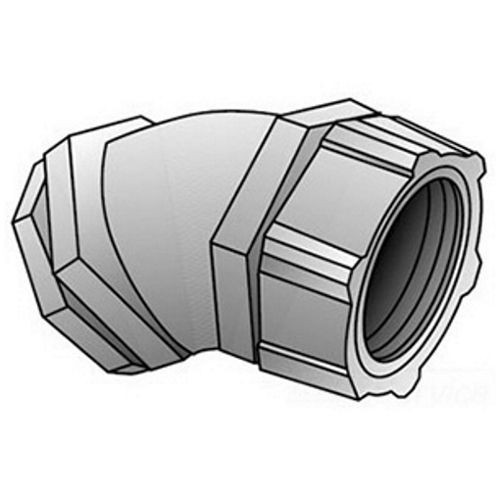

O-Z/Gedney 4Q-4300T Concretetight Liquid Tight Oiltight Raintight Conduit Connector With Insulated Throat, 3 in Trade, 45 deg, Malleable Iron, Zinc Electroplated

O-Z/Gedney 4Q-4300T Concretetight Liquid Tight Oiltight Raintight Conduit Connector With Insulated Throat, 3 in Trade, 45 deg, Malleable Iron, Zinc Electroplated
SKU: OZG4Q-4300T
Manufacturer Part Number: 4Q-4300T
UPC: 783126619911
Documents
Features
- Tapered threaded male NPT hub
- Compact, slim diameter with small turning radius
- Intrinsically safe
- Bonding wedge locknuts are recommended in hazardous locations
- Suitable for wet locations
- Long ferrule prevents pullout and tight bend conduit "pop-out"
- Reusable ferrule
- Inspection windows in ferrule to ensure full conduit engagement
- Insulated throat to protect against wire damage
Specification
Material | Malleable Iron |
---|---|
Series | 4Q-T |
Suitable For Use With | Liquid Tight Flexible Metallic Conduit |
Trade Size | 3 in |
Type | Concretetight Liquid Tight Oiltight Raintight |
Application | Ground and Seal Liquid tight Flexible Metal Conduit to Boxes and Enclosures |
Standard & Approvals | RoHS Compliant, UL 514B, CSA C22.2 No. 18, UL 11853, CSA 009795, Federal Specification W-F-406E, Class I, Div 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Div 1 Per NEC 502.4(A)(1)(e), Class II, Div 2 Per NEC 502.4(B)(2), Class III, Div 1 Per NEC 503.3(A)(2), Class III, Div 2 Per NEC 503.3(B)/ NEC 504.20 |
Dimensions | 10 in H x 4-7/8 in W |
Angle | 45 deg |
Finish | Zinc Electroplated |
Includes | Locknut and KO Sealing Ring |
