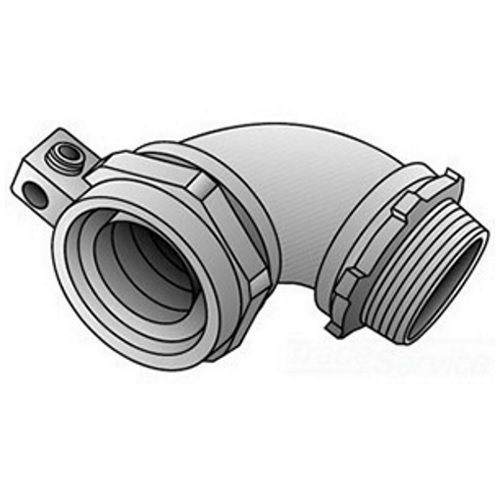

O-Z/Gedney Ground-Tite® 4Q-9125L Concretetight Liquid Tight Oiltight Positive Grounding Raintight Conduit Connector With Lug, 1-1/4 in Trade, 6 to 1/0 AWG Cable Openings, 90 deg, Malleable Iron, Zinc Electroplated
O-Z/Gedney Ground-Tite® 4Q-9125L Concretetight Liquid Tight Oiltight Positive Grounding Raintight Conduit Connector With Lug, 1-1/4 in Trade, 6 to 1/0 AWG Cable Openings, 90 deg, Malleable Iron, Zinc Electroplated
SKU: OZG4Q-9125L
Manufacturer Part Number: 4Q-9125L
UPC: 783126619331
Features
- Tapered threaded male NPT hub
- Compact, slim diameter with small turning radius
- Intrinsically safe
- Bonding wedge locknuts are recommended in hazardous locations
- Long ferrule prevents pullout and tight bend conduit "pop-out"
- Inspection windows in ferrule to ensure full conduit engagement
- Grounding lug is cast as an integral part of malleable iron gland nut
- Capable of withstanding high ground fault
Specification
| Material | Malleable Iron |
|---|---|
| Series | 4Q-L |
| Suitable For Use With | Liquidtight Flexible Metallic Conduit |
| Trade Size | 1-1/4 in |
| Type | Concretetight Liquidtight Oiltight Positive Grounding Raintight |
| Application | Ground and Seal Liquidtight Flexible Metal Conduit to Boxes and Enclosures |
| Standard & Approvals | ARRA, RoHS Compliant, UL E-24264, CSA 009795, UL 467, CSA C22.2 No.41, Federal Specification W-F-406E, Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), NEC 504.20 |
| Dimensions | 2-7/8 in W |
| Angle | 90 |
| Cable Openings | 6 to 1/0 |
| Finish | Zinc Electroplated |
| Includes | Locknut and KO Sealing Ring |
