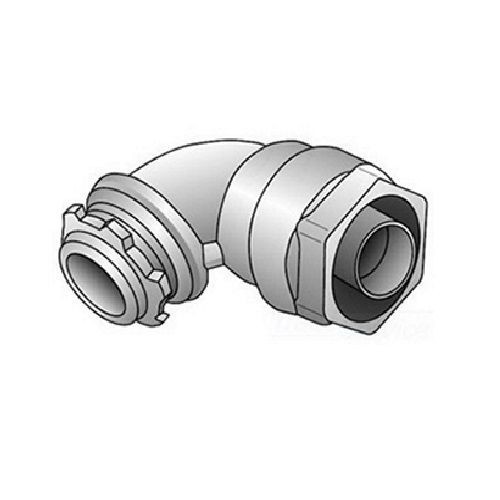

O-Z/Gedney Ground-Tite® 4Q-9150LT Concretetight Liquid Tight Oiltight Positive Grounding Raintight Conduit Connector With Lug and Insulated Throat, 1-1/2 in Trade, 6 to 1/0 AWG Cable Openings, 90 deg, Malleable Iron, Zinc Electroplated

Selected O-Z/Gedney Ground-Tite® 4Q-9150LT Concretetight Liquid Tight Oiltight Positive Grounding Raintight Conduit Connector With Lug and Insulated Throat, 1-1/2 in Trade, 6 to 1/0 AWG Cable Openings, 90 deg, Malleable Iron, Zinc Electroplated
O-Z/Gedney Ground-Tite® 4Q-9150LT Concretetight Liquid Tight Oiltight Positive Grounding Raintight Conduit Connector With Lug and Insulated Throat, 1-1/2 in Trade, 6 to 1/0 AWG Cable Openings, 90 deg, Malleable Iron, Zinc Electroplated

Documents

Short Description

For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquid-tight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.

Features

  • Compression x Tapered MNPT Hub Connection
  • 4Q-LT cuttings have insulated throat to protect against wire damage
  • Inspection windows in ferrule to ensure full engagement
  • 4Q-L cuttings have plain throat
  • Furnished with locknut and KO sealing ring
  • Liquid tight/Raintight/Oiltight/Concrete tight
  • Positive grounding type
  • Grounding lug is cast as an integral part of malleable iron gland nut
  • Capable of withstanding high ground fault
  • Long ferrule prevents pull-out and tight bend conduit pop-out
  • Compact, slim diameter with small turning radius
  • 9/16 in L thread
  • 1-7/8 in gland nut turning radius
  • Malleable Iron Body and Nut, Steel Ferrule

Specification

Material
Malleable Iron
Minimum Order Qty
1
Order Interval
1
Angle
90 deg
Finish
Zinc Electroplated
Suitable For Use With
Liquidtight Flexible Metallic Conduit
Trade Size
1-1/2 in
Application
For Secure, ground and seal liquid-tight flexible metal conduit and terminates bonding conductor run externally alongside liquid-tight conduit
Dimensions
3-1/4 in W
Catalog ID
OZG4Q-9150LT
Cable Openings
6 - 1/0 AWG
Standard & Approvals
UL 467, CSA C22.2 No.41, Federal Specification W-F-406E, NEMA : FB-1, Hazardous Locations: Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20, RoHS Complaint
