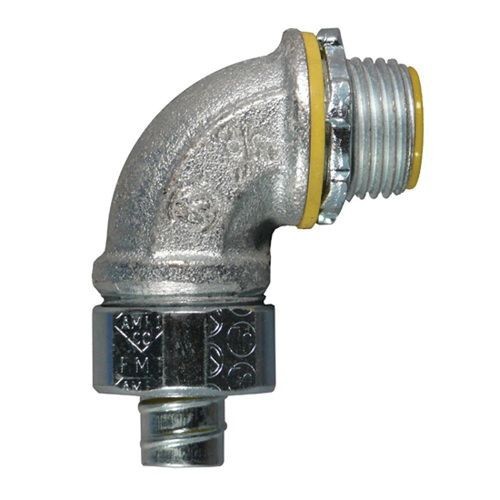

O-Z/Gedney 4QS-9125T Liquid Tight Conduit Connector With Insulated Throat, Locknut, Sealing Ring, 1-1/4 in Trade, 90 deg, Malleable Iron, Zinc Plated

Selected O-Z/Gedney 4QS-9125T Liquid Tight Conduit Connector With Insulated Throat, Locknut, Sealing Ring, 1-1/4 in Trade, 90 deg, Malleable Iron, Zinc Plated
O-Z/Gedney 4QS-9125T Liquid Tight Conduit Connector With Insulated Throat, Locknut, Sealing Ring, 1-1/4 in Trade, 90 deg, Malleable Iron, Zinc Plated

Documents

Short Description

4QS liquidtight connectors and liquidtight flexible metallic conduit are used in applications where conditions of installation, operation or maintenance require flexibility or protection from liquids, vapors or solids.

Features

  • Tapered NPT male hub thread
  • Compact, slim diameter with small turning radius
  • Reusable ferrule
  • Liquidtight, raintight, oil tight
  • Liquidtight flexible metal conduit fittings from 3/8 to 1-1/4 in trade sizes are suitable for grounding
  • Long ferrule prevents pullout and tight bend conduit pop-out

Specification

Material
Malleable Iron
Series
4QS
Suitable For Use With
Flexible Metallic Liquidtight Conduit
Trade Size
1-1/4 in
Standard & Approvals
UL 514B, 11853, CSA C22.2 No.18.3, 009795, NEMA FB-1
Dimensions
2.46 in Dia x 2.08 in L
Angle
90 deg
Finish
Zinc Plated
